starider Posted October 3, 2021 Share Posted October 3, 2021 I would lke to know the rear Camber Angle please. Many thanks in anticipation. Quote Link to comment Share on other sites More sharing options...
pcous Posted October 12, 2021 Share Posted October 12, 2021 Hi starider, You've not said which model, but if it's helpful here are the wheel alignment figures I found for our 2002-07 Alphard: MALAYSIA: TOYOTA ALPHARD MPV(2002 - 2007) Parameter. MIN MAX Front Total Toe -0.11 0.11 FL Toe -0.06 0.06 FR Toe -0.06 0.06 FL Camber -0.41 1.25 FR Camber -0.41 1.25 Rear Total Toe 0.1 0.26 RL Toe 0.05 0.13 RR Toe 0.05 0.13 RL Camber -1.5 -0.58 RR Camber -1.5 -0.58 Left Caster 2.08 3.58 Right Caster 2.08 3.58 Regards pcous 1 Quote Link to comment Share on other sites More sharing options...
Rojie Posted October 13, 2021 Share Posted October 13, 2021 Very useful information, pcous. Thank you. Any of us experiencing uneven tyre wear may find a solution in this data. It may help tyre fitters too, who often want to tweak the suspension geometry ! Or to get it corrected after they did ! Quote Link to comment Share on other sites More sharing options...

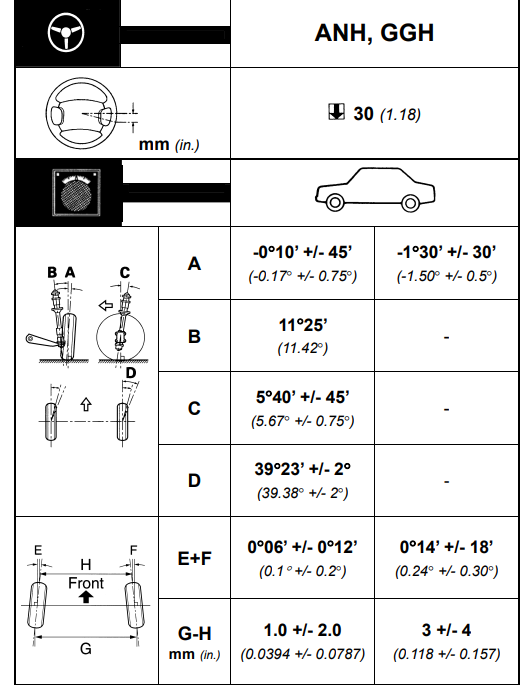

Chris.ac Posted October 14, 2021 Share Posted October 14, 2021 For the 20 series, I have this: Quote Link to comment Share on other sites More sharing options...
Rojie Posted October 14, 2021 Share Posted October 14, 2021 3 hours ago, Chris.ac said: For the 20 series, I have this: Chris, yet more really helpful technical data from you. Thanks Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted October 15, 2021 Share Posted October 15, 2021 After any adjustments to the tracking, make sure to disconnect the battery for a few seconds in order to reset the VSC (skid control) computer Quote Link to comment Share on other sites More sharing options...
pcous Posted February 18, 2022 Share Posted February 18, 2022 Hi all, Correction - I've found an alternative set of wheel alignment figures for 2002-07 Alphard, which are different from those I posted in Oct 2021 (they were Malaysian and I can't see them on the website any longer....): The link is: http://www.jltechno.com/en/alignment_specs.php?brand=Toyota&ModelName=Alphard/Vellfire:H10%C2%A0Series:MNH10W&ModelID=610365 and jltechno also publish data for other Alphard models: http://www.jltechno.com/en/alignment-data-lookup/40016/Toyota.html Alignment Data Lookup->Toyota->Alphard/Vellfire:H10 Series:MNH10W Alignment Specs Parameter MIN spec Standard spec MAX spec Front Total Toe -0.17 0.17 FL Toe -0.09 0.09 FR Toe -0.09 0.09 FL Camber -1.42 0.08 FR Camber -1.42 0.08 Rear Total Toe -0.25 0.25 RL Toe -0.13 0.13 RR Toe -0.13 0.13 RL Camber -2 -1 RR Camber -2 -1 Left Caster 1.67 3.17 Right Caster 1.67 3.17 Left SAI N/A N/A Right SAI 0 0 There are significant differences, so if anyone relied on the earlier figures for alignment, can I suggest you check them again? Regards, Pcous Quote Link to comment Share on other sites More sharing options...
pcous Posted April 28, 2022 Share Posted April 28, 2022 Hi all, Correction - I've been given yet another set of wheel alignment figures for 2002-07 Alphard, which are different from those I posted earlier- these came from our wheel alignment specialist, who searched Japanese data. They're a more extensive set of figures, but for some values the tolerance range is narrower than the figures above: Toyota->Alphard H10 Series:MNH10W Wheel Alignment Specification Parameter Minimum Maximum Front Total Toe -0.10 +0.10 FL Toe -0.05 +0.05 FR Toe -0.05 +0.05 FL Camber -1.25 +0.05 FR Camber -1.25 +0.05 FL Caster +1.40 +3.10 FR Caster +1.40 +3.10 FL SAI +10.05 +11.35 FR SAI +10.05 +11.35 FL Included Angle FR Included Angle Front Cross Camber +8.40 +8.40 -0.45 +11.40 +11.40 +0.45 Front Cross Caster -0.45 +0.45 Rear Total Toe -0.15 +0.15 RL Toe -0.08 +0.08 RR Toe -0.08 +0.08 RL Camber -2.0 -1.0 RR Camber -2.0 -1.0 Regards, pcous Quote Link to comment Share on other sites More sharing options...
