2002 radio wiring

Marky mark
in Toyota Alphard Club Forum (2002 - 2008)

Featured Replies

Posted

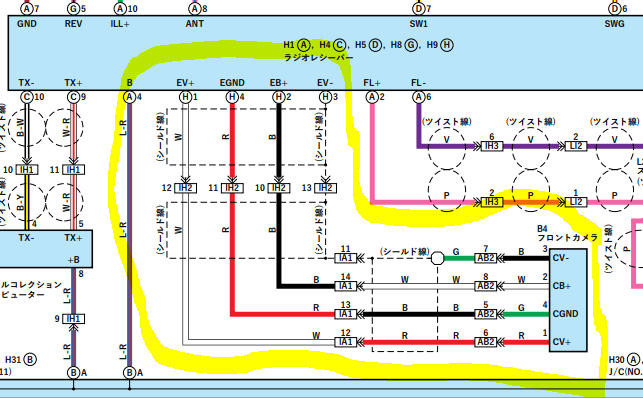

Hi does any one know which wires are the original camera as the previous owner has has cut them it's a 2002 plate all the connections are there but one has been cut



Thanks

Edited by Marky mark
Better info

2 hours ago, Marky mark said:

Hi does any one know which wires are the original camera as the previous owner has has cut them it's a 2002 plate all the connections are there but one has been cut



Thanks



Hello Marky,



Welcome to the Forum

29 minutes ago, Chris.ac said:

http://fsm.japanclassic.ru/toyota/2002.5_7a037_alphard_anh1,mnh1/x339/servinfo/x339i0307000283_base.html



Connector H at stereo end:

http://fsm.japanclassic.ru/toyota/2002.5_7a037_alphard_anh1,mnh1/x339/servinfo/x339i0307000017_base.html



That should get you started.












Interesting how the wires change colour.



If that is not confusing, I don't know what is !
