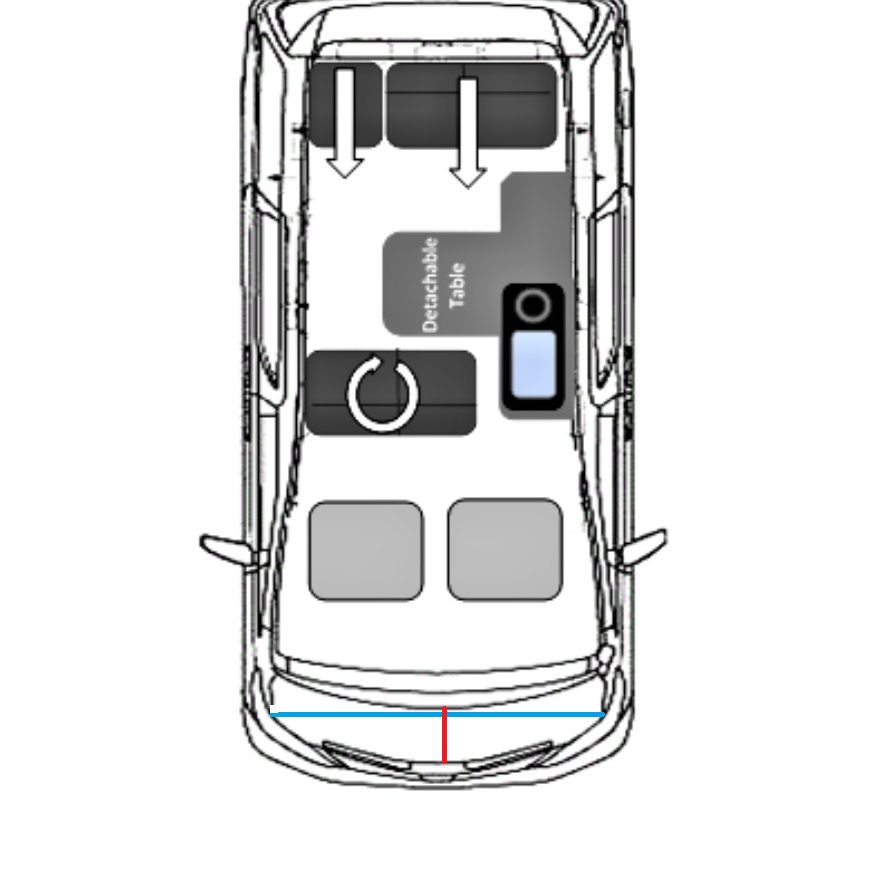

We have not taken delivery of our Alphard yet and having a vinyl wrap designed for the bonnet. I've been asked for measurements of the bonnet. I've attached a picture and need the length of the blue line and the depth of the red line. Thanks in advance for any help on this. At work on a survey ship offshore India and unable to get measurements.

Edited March 6, 20232 yr by Alasdair

The bonnet is convex (from memory) so do you want the chord line from one end of the bonnet to the other or do you want the length of a piece of string laid across the top?

Hi Geralt, any measurement that will follow the contour of the bonnet to get an accurate length and width for the graphics designer to be able to place the design squarely on the bonnet and sent me a draft of what it will look like for approval. The important one is at the red line as there is a central piece to fit on the bonnet and needs the measurement to be able to place it better.

Ok, will have a go at measurement on Friday if not before unless others can measure sooner.



Mine is a 2003. Not sure if any face lifts changed the shape of the bonnet, so keep that in mind also.

Thanks Geralt, much appreciated.

I just had a quick look online and it appears the 2003 to 2007 shapes/sizes are the same so should be ok.

I make it 44cm x 147cm

Thank you Graeme.....much appreciated

On 3/7/2023 at 10:33 AM, Torq2u said:

I make it 44cm x 147cm

Agreed. Measured just above the line where the water jets are located.

That's great thanks Geralt....much appreciated
