Malcolm G

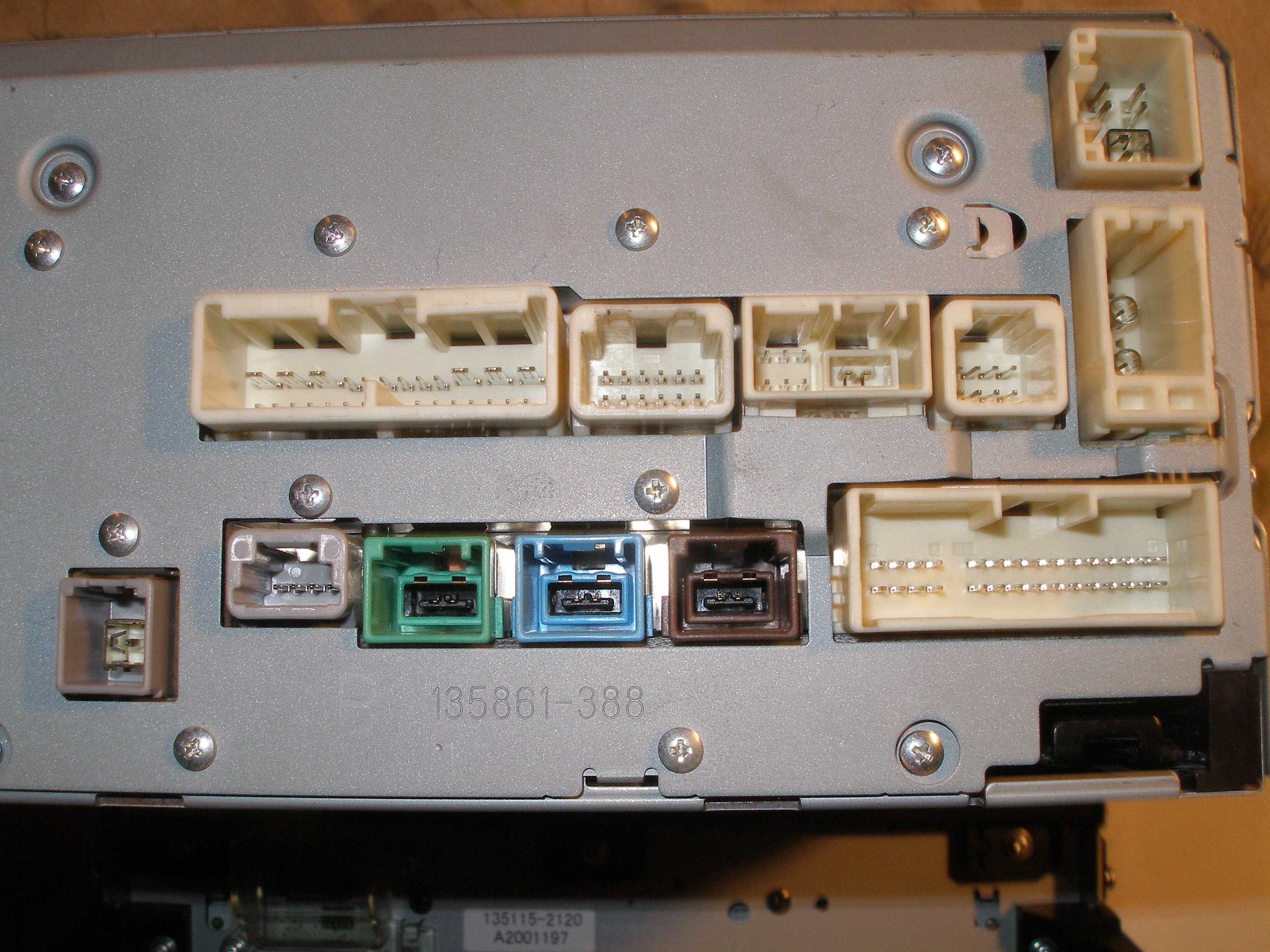

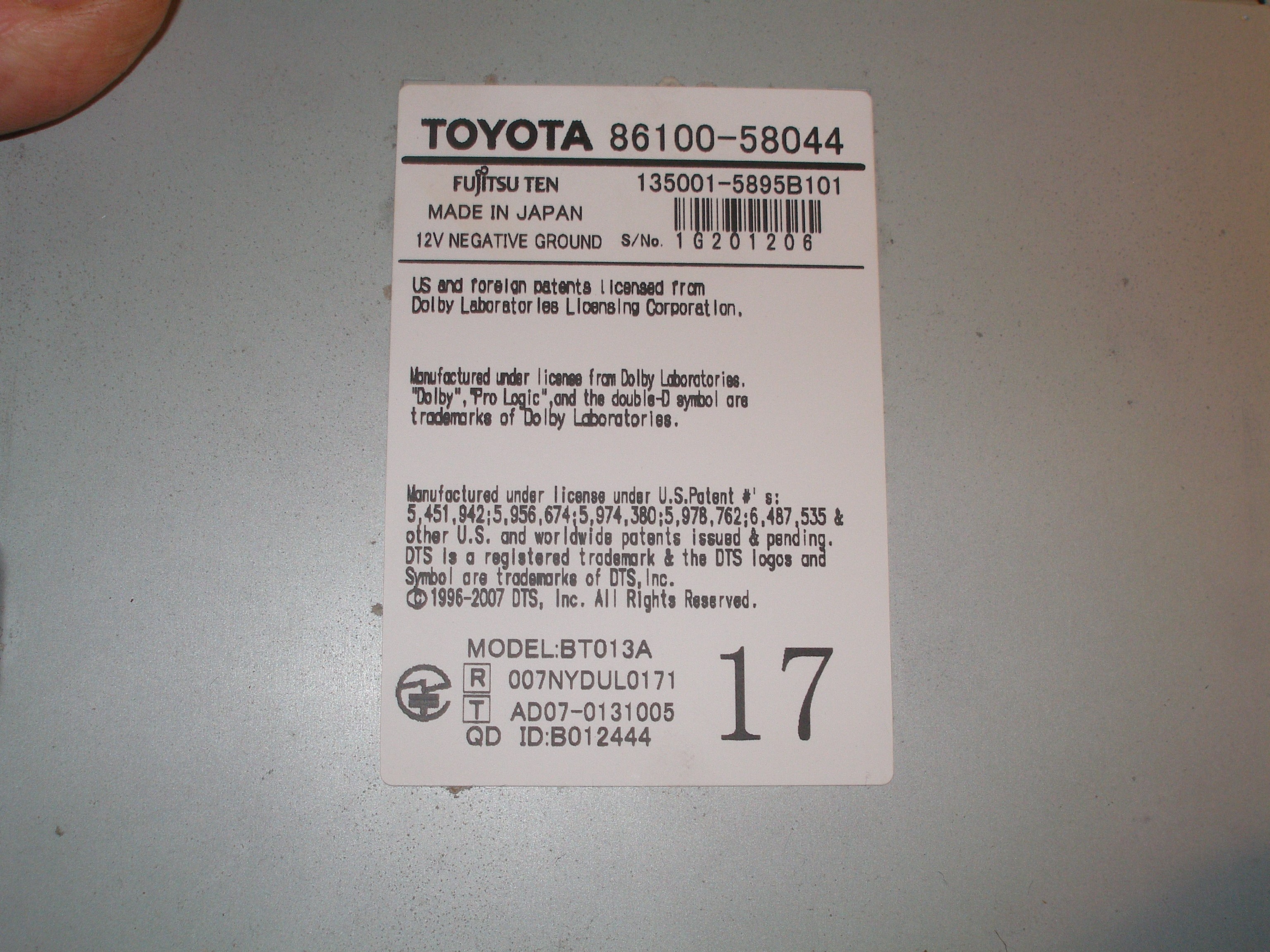

Hello - Need help and guidance Please see attached photos of the back of the OEM head unit on my Alphard - I want to replace it with a Pioneer AVH - Z5200DAB. Can anyone help me identify which socket on the original unit is for the reverse camera connection? I seem to be able to locate the adaptors for everything else but not the reverse camera. Thanks Malcolm

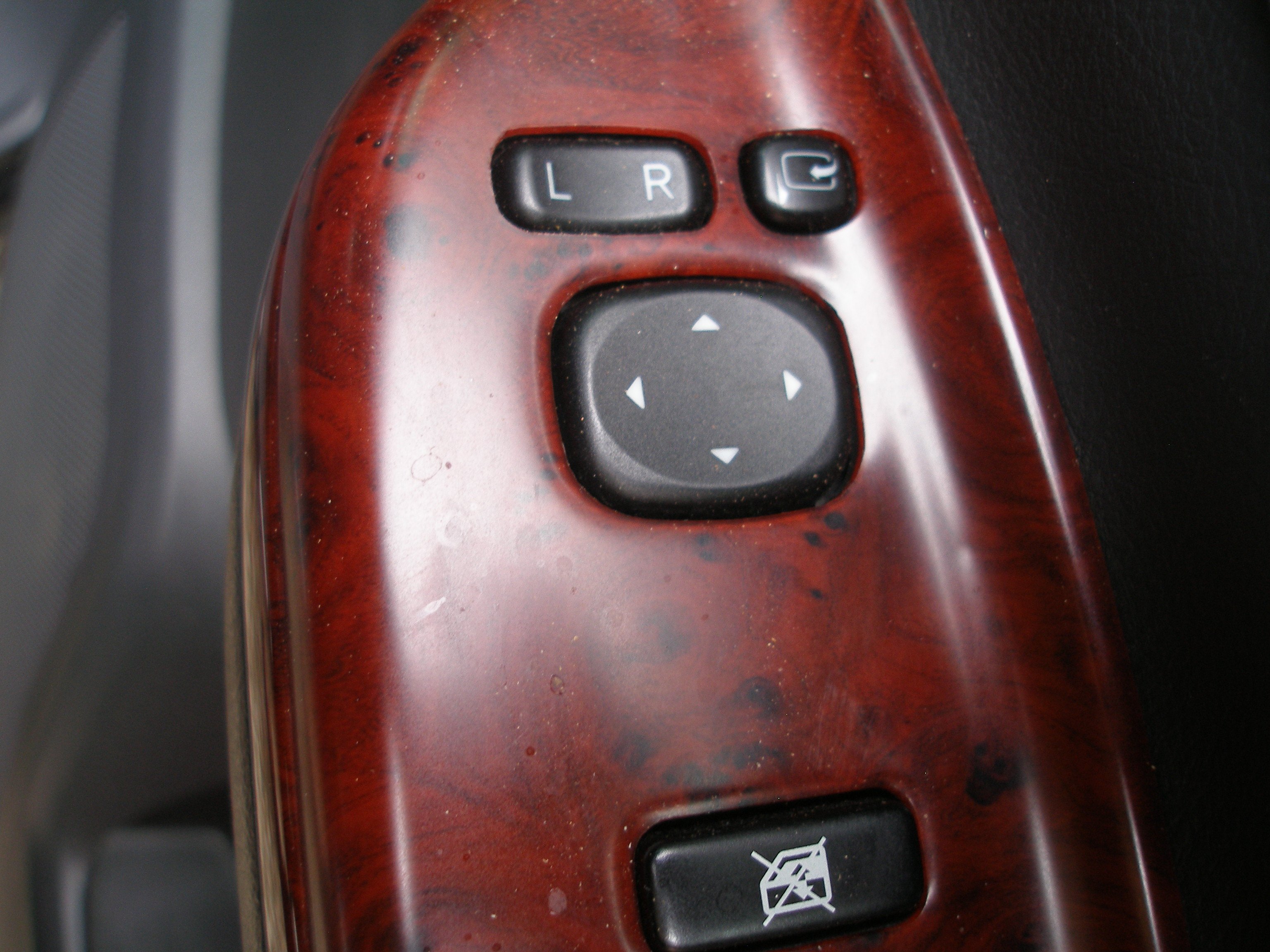

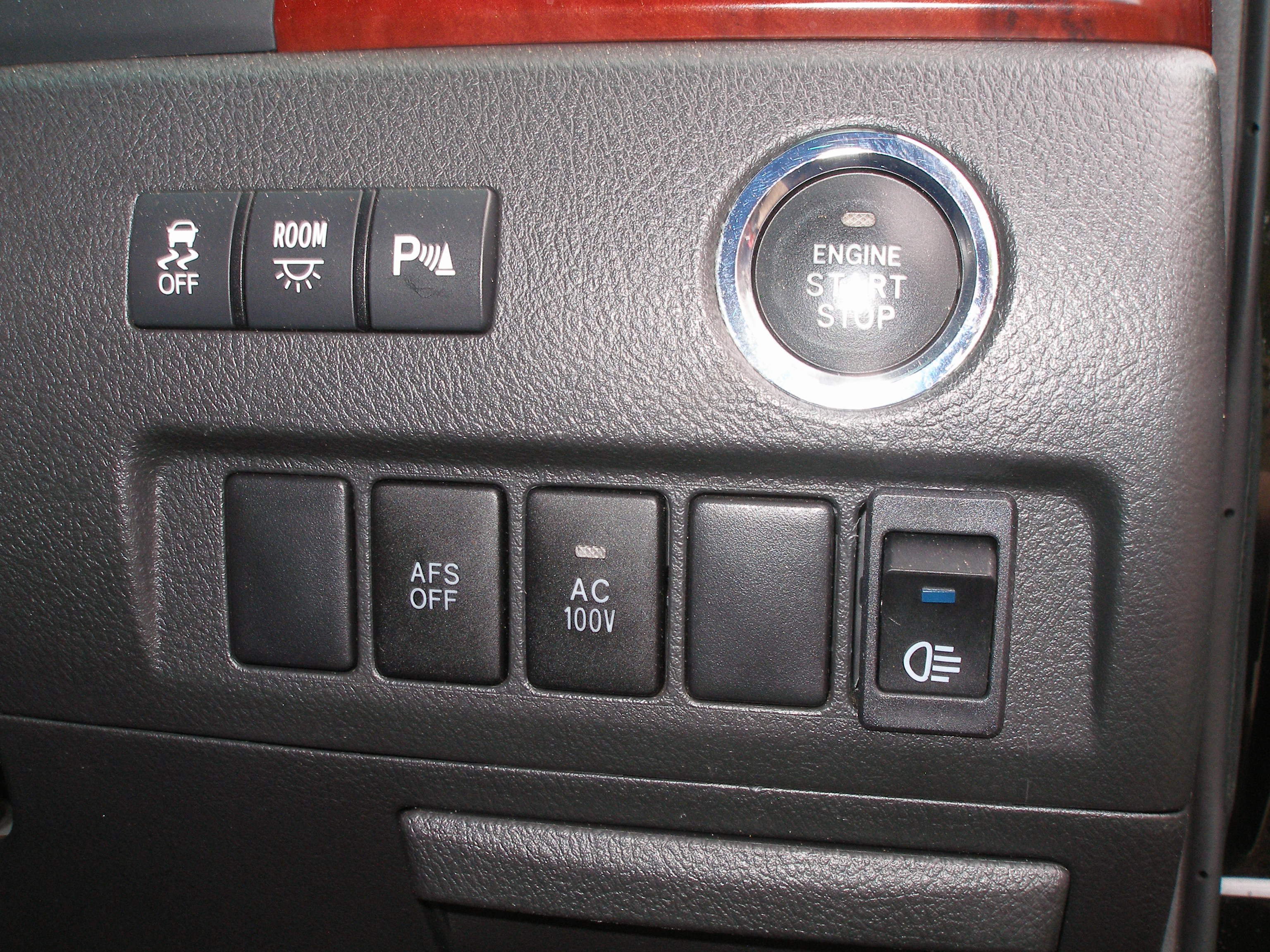

Hello again As requested, the pictures are attached below, the toggle switch below the start button is the rear fog light installed by the importer. As regards the tilting mirrors - On my car, only the left hand side passenger side mirror tilts downwards when reverse is selected and it does this regardless of which position the L-R mirror adjustment switch is in. The little button in the door mounted controls that shows the mirrors folding will only fold the mirrors in when the ignition is on - It does not affect them folding in automatically when locking the car, which is what I was trying to prevent. Thanks again for the help.

Thank you very much to everyone for taking the time to respond. There is no button on my car that I can find that stops the mirrors folding in - I bought the car from an importer who has quite a few of these vehicles in stock and they did identify this button on other models in different dashboard locations, including one exactly where Neville said it would be, but on my car there is no such button or at least I can't find it and neither can the importer. I know that on some other Toyota models there is a function whereby you press and hold down the mirror fold button while pressing one of the arrows on the mirror position control button and this disables the automatic fold but I have tried this and it does not work. I do know a couple of Japanese people who I see occasionally and my current plan is to take the original Japanese owner's handbook when I next see them and pester them to figure it out. I am sure that getting an OBD reader is a good idea (thank you Craig) - I normally work on much older cars where they are not required, but I think on this vehicle it would be very wise to have one, I will look into the JPNZ manuals.

Hello - New member having just bought a newly imported 2010 350 - Apologies if this is an existing thread, but can anyone tell me how to stop the mirrors folding every time I lock the vehicle? Have looked online but to no avail.
