MangoCactus

I've seen that one on ebay. It doesn't have a vent port on the left like my one so at least for the hybrid its no use. Forgot to ask on the previous post but if my battery is AGM will it say so on the battery? Want to make sure I use the right setting on my external battery charger.

Looks like I'm going to have to fork out for the expensive battery then! Not the end of the world but mildly annoying. Thanks for checking @Picasso. My local Toyota Garage will be able to get me one within 2 weeks direct from Japan. My battery only gets to ~9v when fully charged with an external charger and drops to ~6v very quickly. It's definitely toast in my case. Its not that old (2020) But I know the Japanese owners before me didn't drive it that often. Aprox 5000km a year looking at the service history.

Ive sent you a message, thanks!

Hey all, The 12v battery in my Alphard Hybrid 1st Gen has recently died. After much searching I've been struggling to find many replacement options. It appears to be a weird somewhat unique to the car battery. My local Toyota Garage can get one but it will be £350! Hoping to find something a bit less expensive than that but if I have to I will get the OEM battery from the garage. The dead battery which was fitted while it was still in Japan is a Panasonic 20HR 51 Ah CCA 355A S55D23R the Toyota part number is 2880028021. It's an auxiliary vented battery if that makes any difference. Thanks!

Hi Lohliak, I also have that remote, that is for the rear screen in the back. The one I pictured above is separate remote for the digital TV tuner. Your Alphard may not have the digital TV tuner built in as it was not a standard feature. I think mine was installed by Toyota a few years after the car was built but I don't know and it may have been an option from the factory. The only built in TV tuner is the one for Japanese analogue TV. I only know mine had it fitted as I had this extra remote and the manual for the tuner included when the car was imported. On the left of my steering wheel you can also see an extra IR remote receiver which I assume is used by the digital tuner. If you do not have the digital tuner fitted the RCA connectors in the rear should just go to the Video channel on the head unit. Do you get a video signal if you plug in something like a separate DVD player, or is just the audio not coming through? If you get video but no audio that may mean the audio connection is faulty. Rojie for the antenna I assume the one for the digital TV tuner is the ones on the front and rear window that say "DIGITAL" on them. I don't think Ill ever be able to use this tuner for UK TV as Freeview (DVB-T) and Japanese Digital TV (ISDB-T) are not compatible so these antennas will never be used again. All this will ever be for me is a passthrough for the rear RCA connectors. Slightly annoying I have to turn it on every time I want to use it but not the end of the world. If I remove the tuner the rear connectors may just work but it'll be more work than its worth most likely

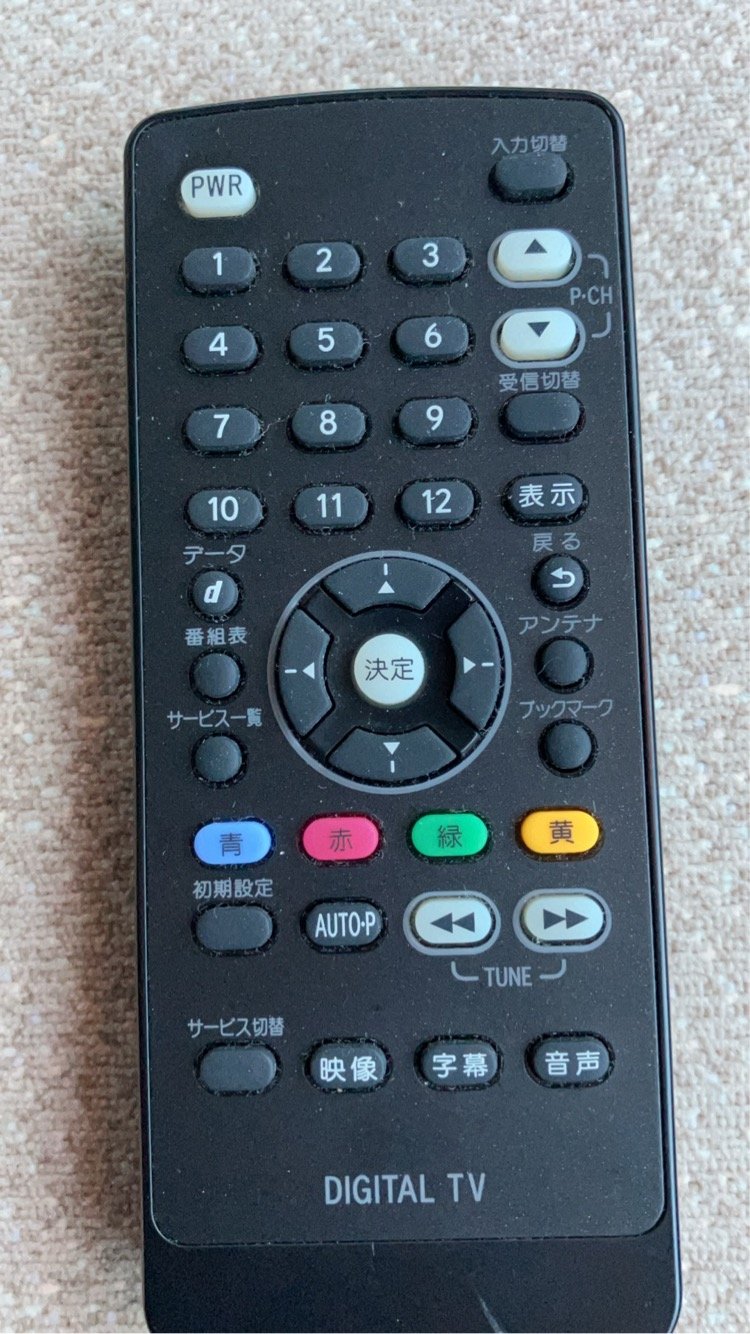

Just thought I’d post that I got it working! Turns out it was the digital tuner hijacking the RCA input. If anybody else is having this issue here is how to solve it. When on video input you need to switch the tuner to on (PWR) using the remote (pictured). I can’t see any other way to turn it on so the remote is essential. When it’s on press the top right button (入力切替) to switch input. It will then switch to the connectors in the centre console. When you switch the car off the DTV tuner will also turn off. You need to switch the DTV box back on each time. The input switch however stays on the last used input. Great to have it working. Sound quality is much improved. Now I just need run a cable neatly up to the front up to my phone stand.

Since going through the documents that came with the car it would appear it has a Japanese digital TV tuner. The tv button in the car is for the analogue one. Might the digital TV tuner be wired in to the RCA connection possibly? It’s a Toyota 08548-00250 tuner.

I'll be seeing a car savvy friend in about a month so I'll see if he can take a look at it then. My FM transmitter has just arrived from Japan which is significantly better than any other one I've used in the past. Much better sound quality than the rubbish on Amazon UK. As an added bonus as I'm broadcasting to 76FM I'm getting no interference from other stations on the air too. I can at least use it as an audio aux for now until the RCA is repaired.

I haven’t looked in the centre console yet. I had the cover off as I needed to charge the battery as it hadn’t been used for several months before I got it. Battery is dated 2020 so I’d guess that was the last time someone had this cover off. Not quite sure how to get to the rear of the RCA input from there. Up from where the battery is I guess? I can’t see any evidence of any modifications anywhere in the car. Everything else works perfectly. Even played a minidisc in it the other day out of curiosity.

I was hoping to use it like an aux in so I could plug in my phone or an external DAB radio. I’ve definitely put in a RCA input, it was even a Japanese import PS2 when I tried to test if the video signal part worked on the off chance it was being picky about signal! I’ve done all of this when the car was stationery. I’ve ordered a FM transmitter of Amazon Japan (so I can make use of the lower FM range of the radio that will be free of interference from local stations) so I’ll use that if needs be but a wired connection would be better for reliability, sound quality and just a bit less clutter round the dash. I think the next thing to try will be to take the radio head unit out and check it’s actually plugged in!

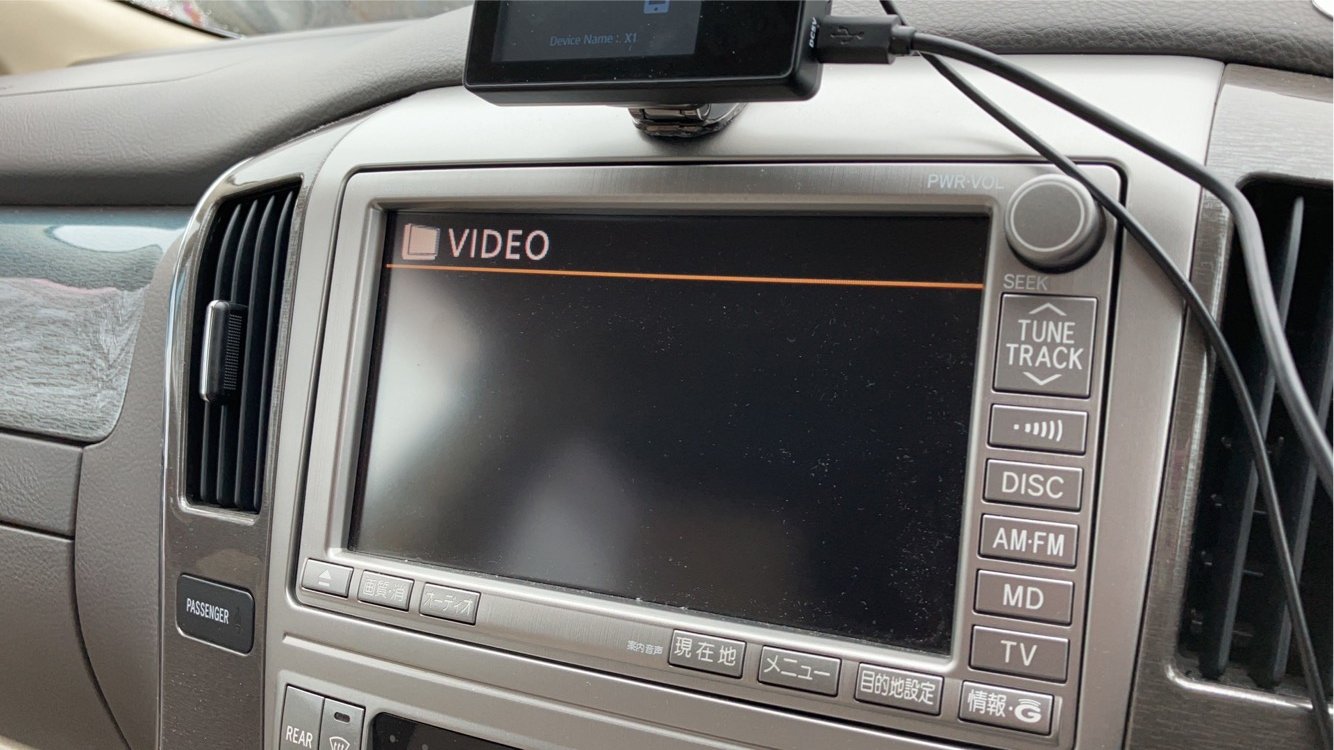

Hi Roger, I have it set to the video input on the radio. All I get is a black screen with no audio when selected. I have the HDD unit if that helps. Thanks

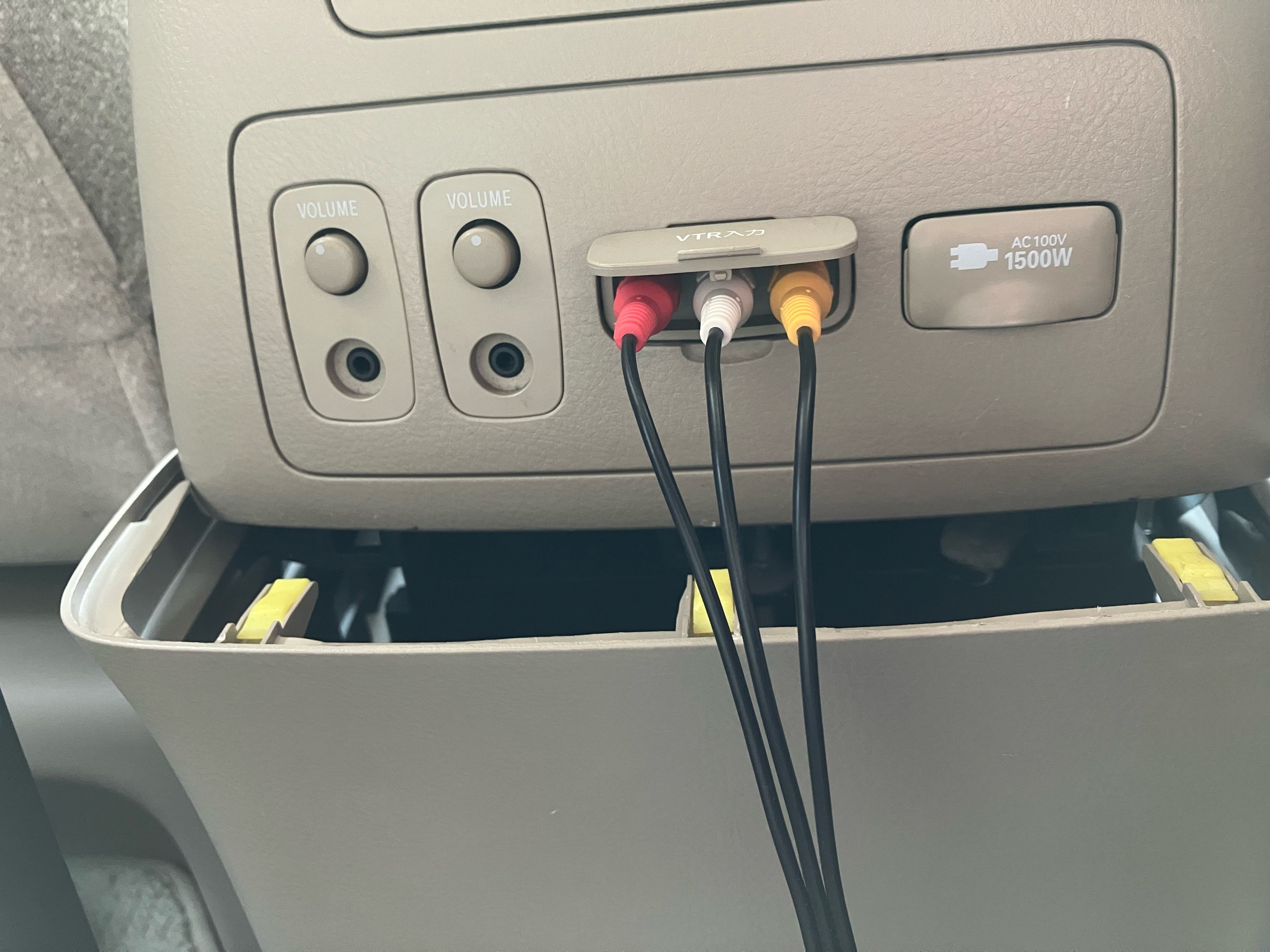

Hi all I've had my Alphard for about a month now and loving it. Its everything I needed in a car. I've recently tried to use the RCA video input in the middle section between the driver and passenger seat as I wanted to wire in an external DAB radio and have had no luck getting it to work. I first tried a 3.5mm to the red and white leads from my phone just for audio and got nothing coming through. Thinking maybe it requires a video signal before it'll work I then tried putting a PS2 in to see if it would get audio or video. Sill nothing on either the front or rear screen so starting to think the input is either broken or unplugged somewhere else I haven't found yet. Anybody got any ideas where I could look to solve this issue? Thanks 😀
