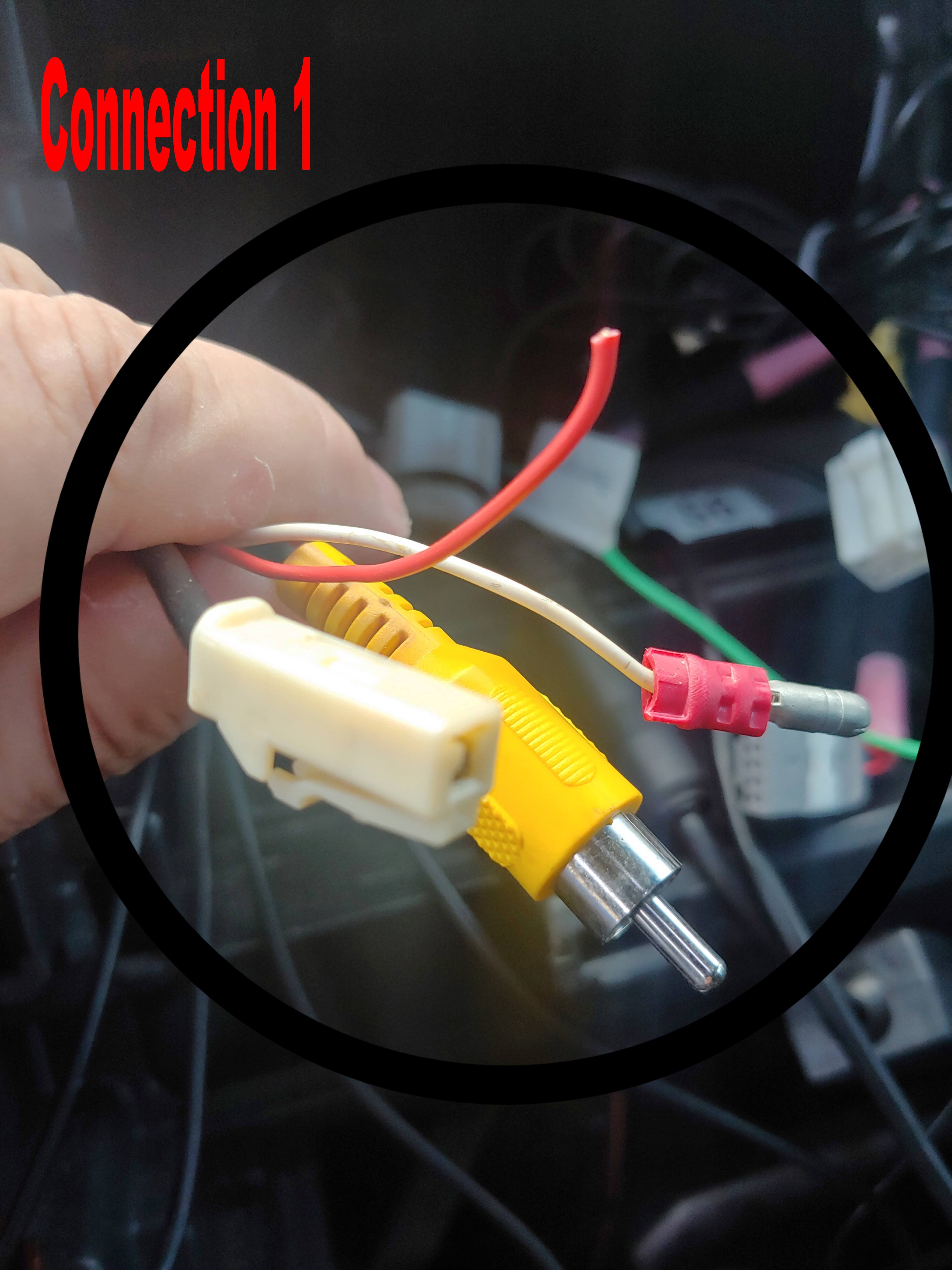

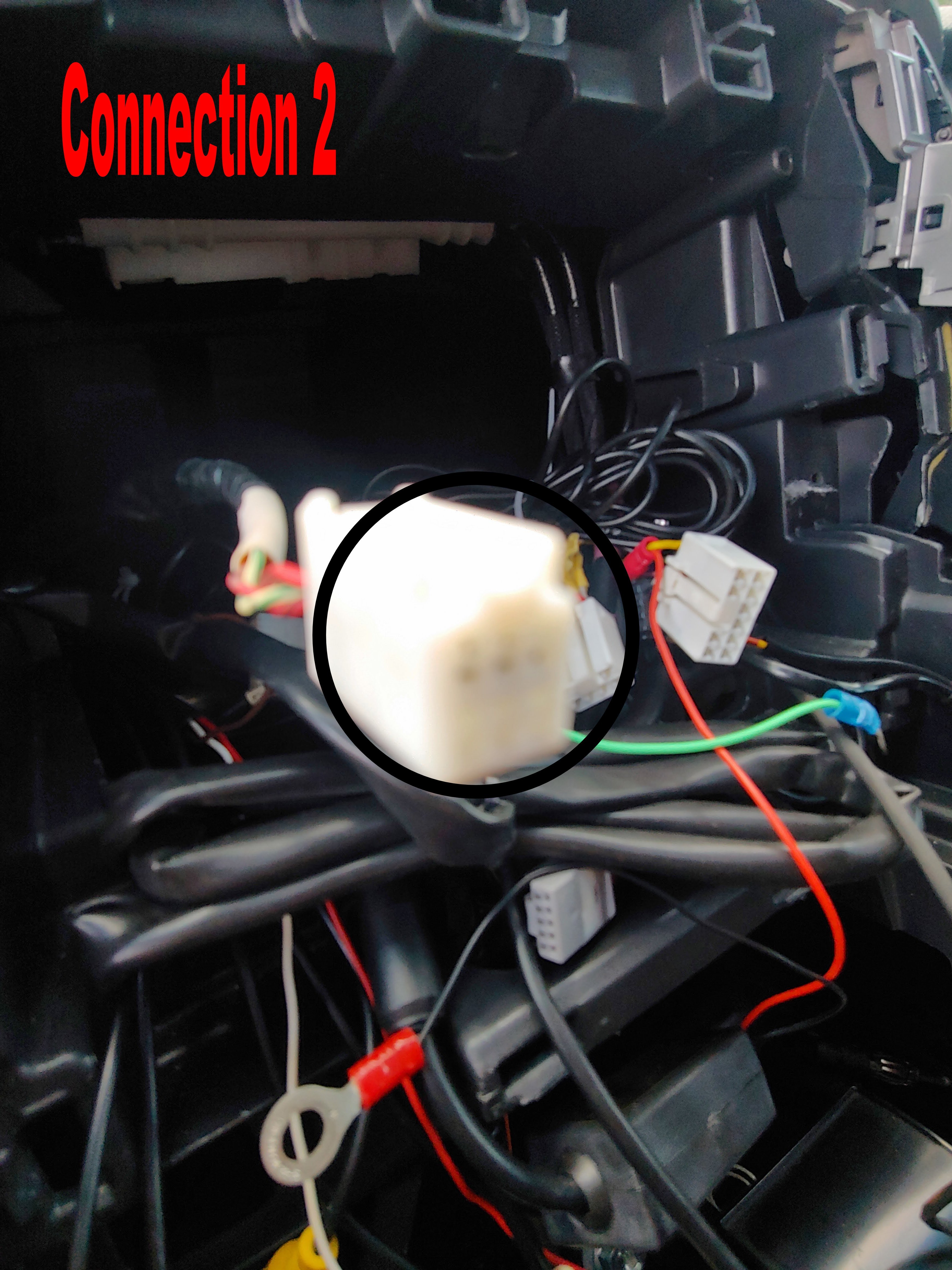

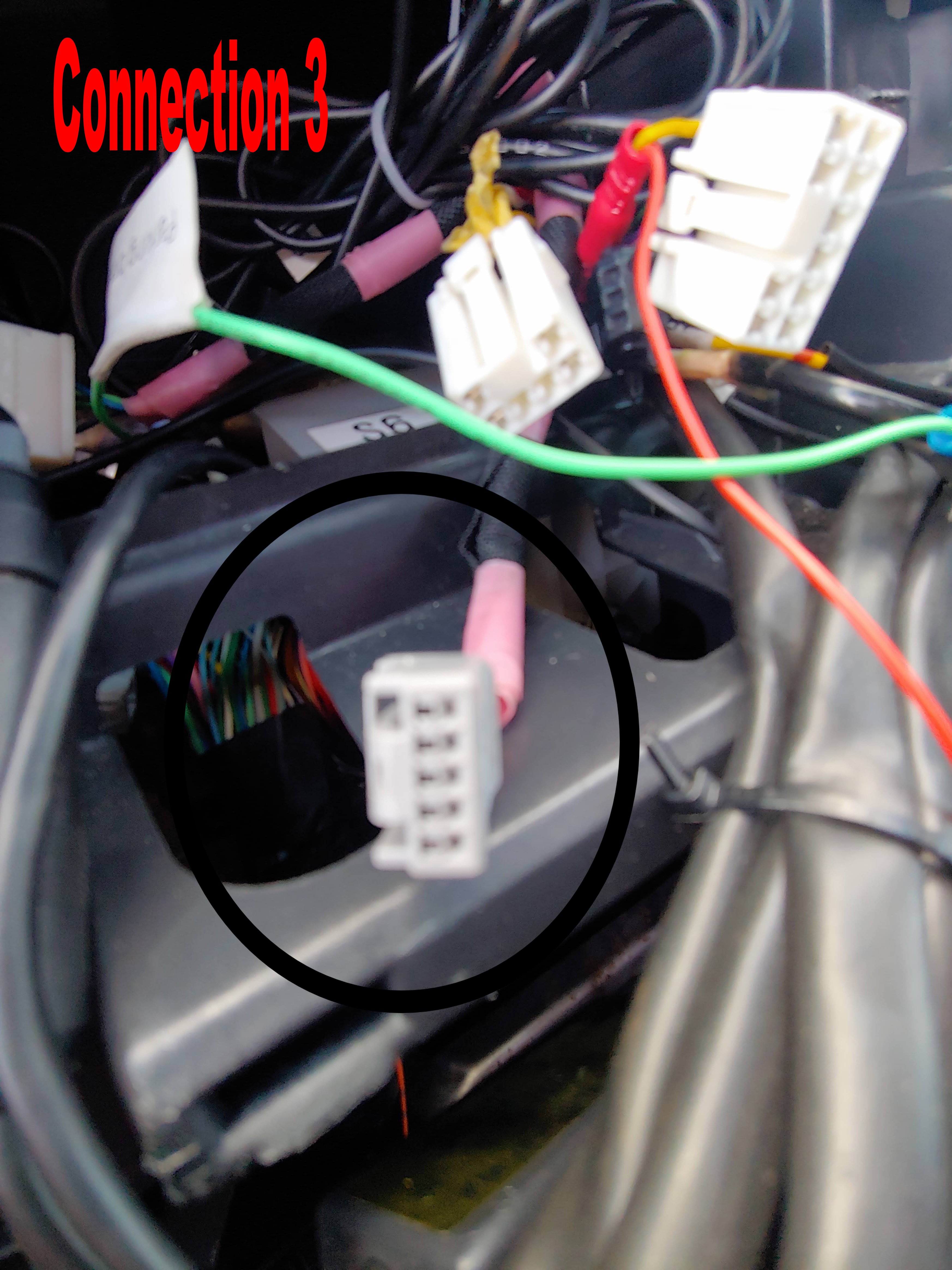

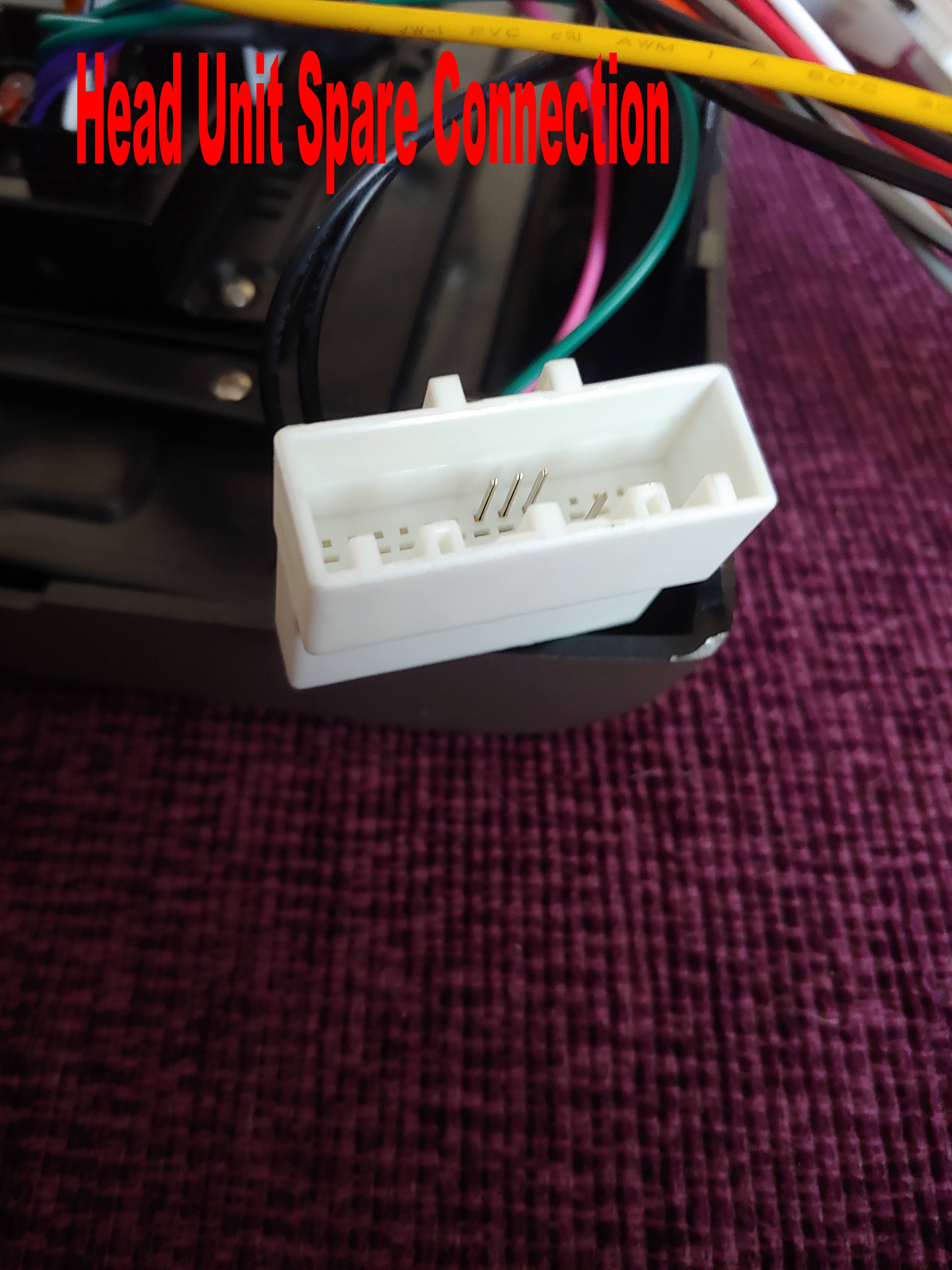

Voodoo101 Posted August 3, 2022 Share Posted August 3, 2022 I posted this in general chat, but then thought it may be better in the forum. I have an Android head unit but it seems that all the features do not work properly, mainly to do with reading the canbus, so I removed the unit to check the wiring and I have one connection spare coming from the head unit. This is not really surprising as I have never found a car yet that has the same connections, so it may just be a common adaptor, but I have three wires in the car that I have no idea what they are. I was hoping somebody could identify them. One lead does sort of fit in the spare connector, but is not the same size. Sorry about the fussy pictures, my phone is on its way out. Quote Link to comment Share on other sites More sharing options...
Steve in Chester Posted August 3, 2022 Share Posted August 3, 2022 4 hours ago, Voodoo101 said: I have an Android head unit but it seems that all the features do not work properly, mainly to do with reading the canbus, Have you seen the canbus decoders like in this video: I don’t know much about them but maybe someone else does. I guess they convert the communications going back an forth into a format the radio can understand. Quote Link to comment Share on other sites More sharing options...
Voodoo101 Posted August 3, 2022 Author Share Posted August 3, 2022 1 hour ago, Steve in Chester said: Have you seen the canbus decoders like in this video: I don’t know much about them but maybe someone else does. I guess they convert the communications going back an forth into a format the radio can understand. Yeah I saw that, but the ANH20 is different and that seems to be for the amplifier. But thanks Quote Link to comment Share on other sites More sharing options...

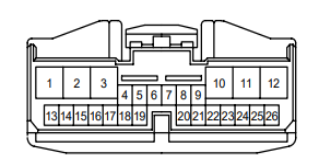

Chris.ac Posted August 4, 2022 Share Posted August 4, 2022 (edited) Voodoo101, on my GGH20W, so far I believe this is the wiring for the main power socket (lots of measurements and scratching about on japanese forums) PIN Colour Name 1 Yellow +B1 2 Grey ACC1 3 Red (B?) IG 4 B MACC Microphone 5 W MIN+ Microphone 6 R MIN- Microphone 7 Shield (WB) SGND Microphone 8 - TEST 9 - 10 Brown GND1 11 not used not used 12 Green illumination? 13 Red ? 14 Green ? 15 Yellow Security signal 16 Red (LG) Reverse signal 17 Blue Park Brake signal (Short to 10) 18 Black (W) Speed signal (add SW) 19 not used not used 20 Brown (W-B) SNS2 Microphone 21 Black CANH TRC VSC 22 White CANL TRC VSC 23 Green SWG Steering cont 24 Blue SW2 Steering cont 25 LightGreen SW1 Steering cont 26 not used not used Edited August 4, 2022 by Chris.ac 1 Quote Link to comment Share on other sites More sharing options...
Voodoo101 Posted August 4, 2022 Author Share Posted August 4, 2022 7 minutes ago, Chris.ac said: Voodoo101, on my GGH20W, so far I believe this is the wiring for the main power socket (lots of measurements and scratching about on japanese forums) PIN Colour Name 1 Yellow +B1 2 Grey ACC1 3 Red (B?) IG 4 B MACC Microphone 5 W MIN+ Microphone 6 R MIN- Microphone 7 Shield (WB) SGND Microphone 8 - TEST 9 - 10 Brown GND1 11 not used not used 12 Green illumination? 13 Red ? 14 Green ? 15 Yellow Security signal 16 Red (LG) Reverse signal 17 Blue Park Brake signal (Short to 10) 18 Black (W) Speed signal (add SW) 19 not used not used 20 Brown (W-B) SNS2 Microphone 21 Black CANH TRC VSC 22 White CANL TRC VSC 23 Green SWG Steering cont 24 Blue SW2 Steering cont 25 LightGreen SW1 Steering cont 26 not used not used No I have the power plug and the speaker signal wires, they work fine, but your chart helps alot. Thanks 1 Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 4, 2022 Share Posted August 4, 2022 We need to get all the original plugs from the wiring looms photographed, and Identified for several loom revisions it seems. Mine is a may 2010, and I believe the loom swapped in September 2010. Some of the headunits have that green GVIF connector, which im not sure if it is a digital video feed in for the hybrid, which on the 20series started in late 2010, early 2011 (the GVIF is video only, and can be used to overlay graphics or video feed) Blue is definitely to do with the 270/360degree cameras, parking assist, sonar overlay (it should connect to the parking assist ecu under passenger seat, but the rear camera is separate feed via another plug. Brown, im still not 100%, it needs connecting to correctly display video at rear, im thinking part of the DTV input - it may have another ecu it connects to that swaps input between dvd and dtv. Quote Link to comment Share on other sites More sharing options...
arthurj Posted August 4, 2022 Share Posted August 4, 2022 I have a 2012 hybrid and the back of my unit looks like this, apparently - no green port. I think the hybrid info displayed just comes from the canbus, it’s not that detailed. Quote Link to comment Share on other sites More sharing options...
Voodoo101 Posted August 4, 2022 Author Share Posted August 4, 2022 I've just purchased a wiring harness from Aliexpress with a canbus. I think the one that came with the head unit is just a standard cable and it has no canbus unit. I've spoken to the seller and he has told me the protocol setting I need. I tried them before but made no difference. This cable has an extra plug to go in the back of the unit. Skyfame Car 16pin Wiring Harness Adapter Canbus Box Decoder For Alphard 20 Android Radio Power Cable - Speaker Line - AliExpress Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 5, 2022 Share Posted August 5, 2022 the difficulty is that all the wiring diagrams I can find, all seem to be from the alphards that were export models, they seems to have different sockets to the domestic alphards. its bizarre Quote Link to comment Share on other sites More sharing options...
Voodoo101 Posted August 5, 2022 Author Share Posted August 5, 2022 5 hours ago, Chris.ac said: the difficulty is that all the wiring diagrams I can find, all seem to be from the alphards that were export models, they seems to have different sockets to the domestic alphards. its bizarre I didn't even know there was domestic models. I thought all Alphards and Vellfires where imported. Quote Link to comment Share on other sites More sharing options...
Rojie Posted August 5, 2022 Share Posted August 5, 2022 1 hour ago, Voodoo101 said: I didn't even know there was domestic models. I thought all Alphards and Vellfires where imported. They are. I think Chris means Domestic, as in Japanese market, and exported, as in all other markets. Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 5, 2022 Share Posted August 5, 2022 5 hours ago, Rojie said: They are. I think Chris means Domestic, as in Japanese market, and exported, as in all other markets. correct. JDM (Japanese domestic market) vs the models specifically created for export. Toyota started exporting the 20 series, to countries like China, Malaysia, Russia, UAE. These usually have codes like ggh20L or ggh20R (L= left hand drive R=right hand drive) they usually come with options that comply with local legislation, such as in China, the headlights have auto dip, Russia have rear fog lights, China with have smog detector that turns climate control to internal circulation. The headunits are usually dumbed down, they don't feature G book, or telematics, or have English/Russian as a selectable language, the 18 speaker option is rarer, as the wiring looms are standardised, as aftermarket systems are usually fitted. It is why finding JDM versions of the wiring diagrams is hard, these are controlled by a publishing house, in Japan, you are able to buy the maintenance/repair manuals and wiring diagrams on CD ROM and book form as a dealer option. I found some of these manuals and cd ROMs for the ggh20W ATH20W and ANH20W, but I'm not willing to spend upwards of £300 for the set. They are out of print, so it's the 2nd hand market only. Thankfully, the exported versions manuals are available online, and apart from the headunit wiring, everything else seems okay Quote Link to comment Share on other sites More sharing options...

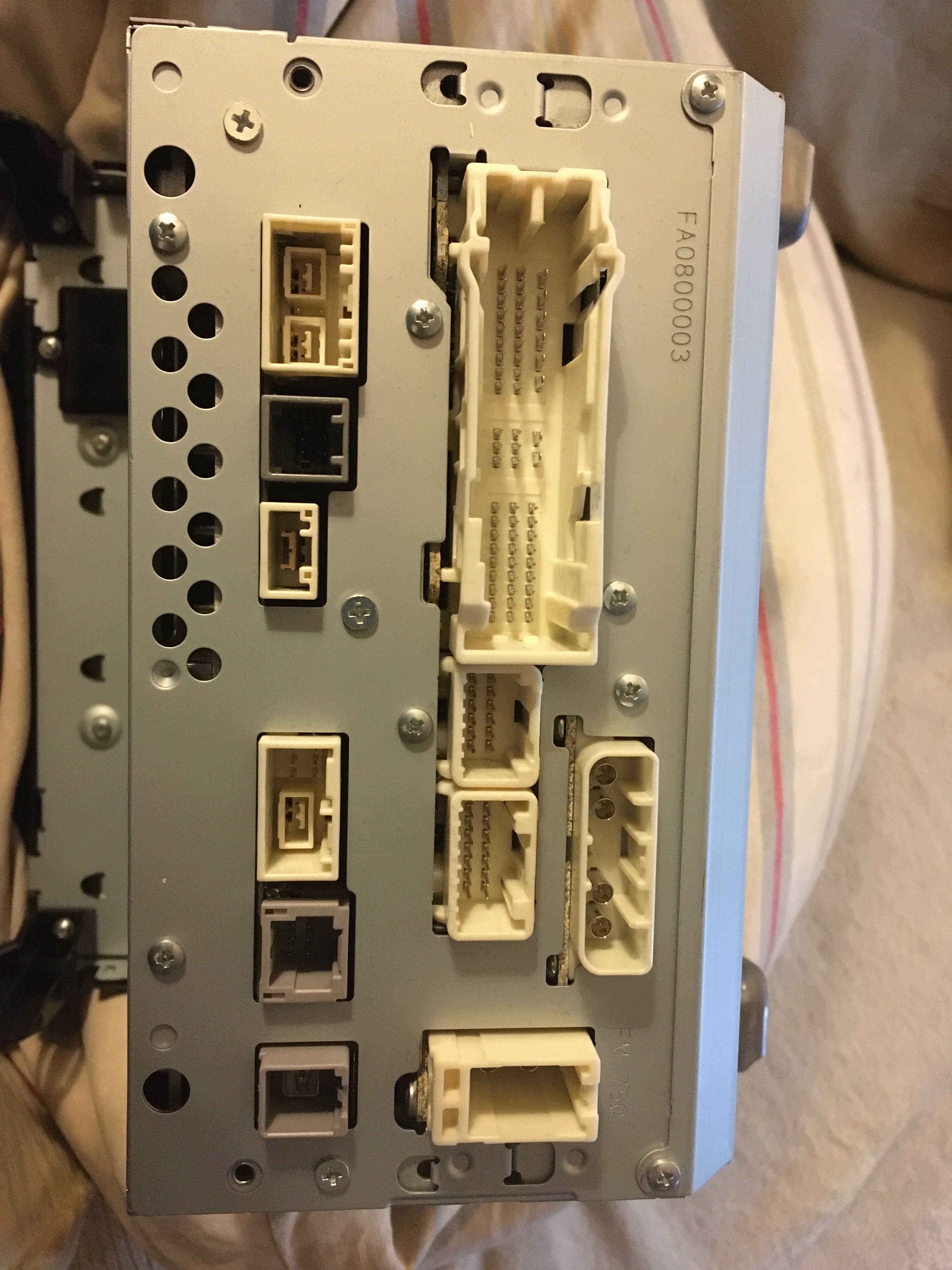

Steve81 Posted March 12 Share Posted March 12 On 8/4/2022 at 4:17 PM, arthurj said: I have a 2012 hybrid and the back of my unit looks like this, apparently - no green port. I think the hybrid info displayed just comes from the canbus, it’s not that detailed. @arthurj I have the nhba-x62g, which appears to have many of the same connections on the back as yours. Do you have any information on what the different connections are for please? l've never seen anything like the 4 individually numbered (1-4) single pin black sockets (top right of your photo) before. Quote Link to comment Share on other sites More sharing options...
arthurj Posted March 13 Share Posted March 13 9 hours ago, Steve81 said: @arthurj I have the nhba-x62g, which appears to have many of the same connections on the back as yours. Do you have any information on what the different connections are for please? l've never seen anything like the 4 individually numbered (1-4) single pin black sockets (top right of your photo) before. As it happens… Quote Link to comment Share on other sites More sharing options...
arthurj Posted March 13 Share Posted March 13 I think those 4 are for Japanese TV, either an aerial or decoder box. Quote Link to comment Share on other sites More sharing options...
Steve81 Posted March 13 Share Posted March 13 24 minutes ago, arthurj said: As it happens… You sir, are a legend! That's amazing, thanks so much! Did you keep your head unit or swap it out? Quote Link to comment Share on other sites More sharing options...
arthurj Posted March 13 Share Posted March 13 I still have mine, mainly because the kids love watching dvds in the back and it’s great for that. Quote Link to comment Share on other sites More sharing options...

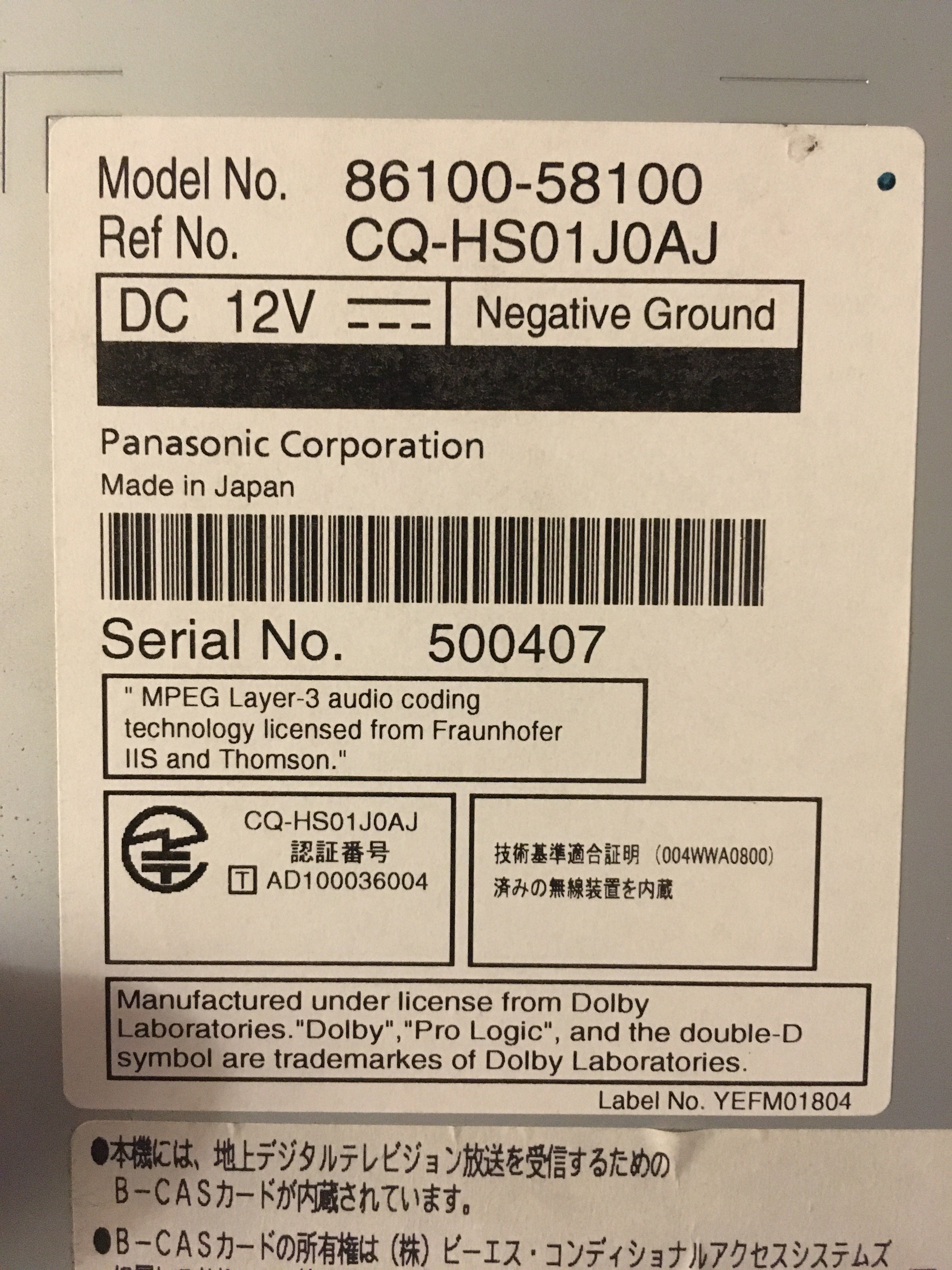

Laurence Posted March 15 Share Posted March 15 A lot of connectors shown but none of them appear to be anything like the connectors on the back of my Panasonic 86100-58100 head unit. Most of the connectors are plain white with a couple of grey ones. It's a late 2011 240 Alphard. Quote Link to comment Share on other sites More sharing options...
Laurence Posted March 15 Share Posted March 15 I;m mainly looking to identify the speaker cables and if possible, the steering wheel controls. Everything else I can live without. Id be very grateful if anyone can point me in the right direction. Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted March 16 Share Posted March 16 https://kolhosniki.ru/td/td3ewd/pgm/standaloneEWD.php?pubNo=EM08Z5;ewd_type=intro;ewd=INTRO01;term=200804;vwlang=en;ewdpath=/td3ewd Quote Link to comment Share on other sites More sharing options...
Laurence Posted March 27 Share Posted March 27 Many thanks, that will keep me busy for a while 🙂 Quote Link to comment Share on other sites More sharing options...
