Steve in Chester Posted August 6, 2022 Share Posted August 6, 2022 I found this pdf about the workings of the hybrid system and battery removal procedure. https://www.crown-motors.com/tch/corpinfo/RBRP/images/Hybrid Vehicle Dismantling Manual for ATH20 - Alphard HV.pdf Quote Link to comment Share on other sites More sharing options...
arthurj Posted August 7, 2022 Share Posted August 7, 2022 I can’t seem to find an easy way to open the intake fan cover on the centre console, as that’s the thing everyone says you need to clean as part of regular maintenance. Looks like you have dismantle the whole thing, which involves taking the seats out! Quote Link to comment Share on other sites More sharing options...
Steve in Chester Posted August 8, 2022 Author Share Posted August 8, 2022 The cooling fan is under the seat. This thread also contains a link to a website with more details. I can’t verify this though as I’ve not got the hybrid. Quote Link to comment Share on other sites More sharing options...

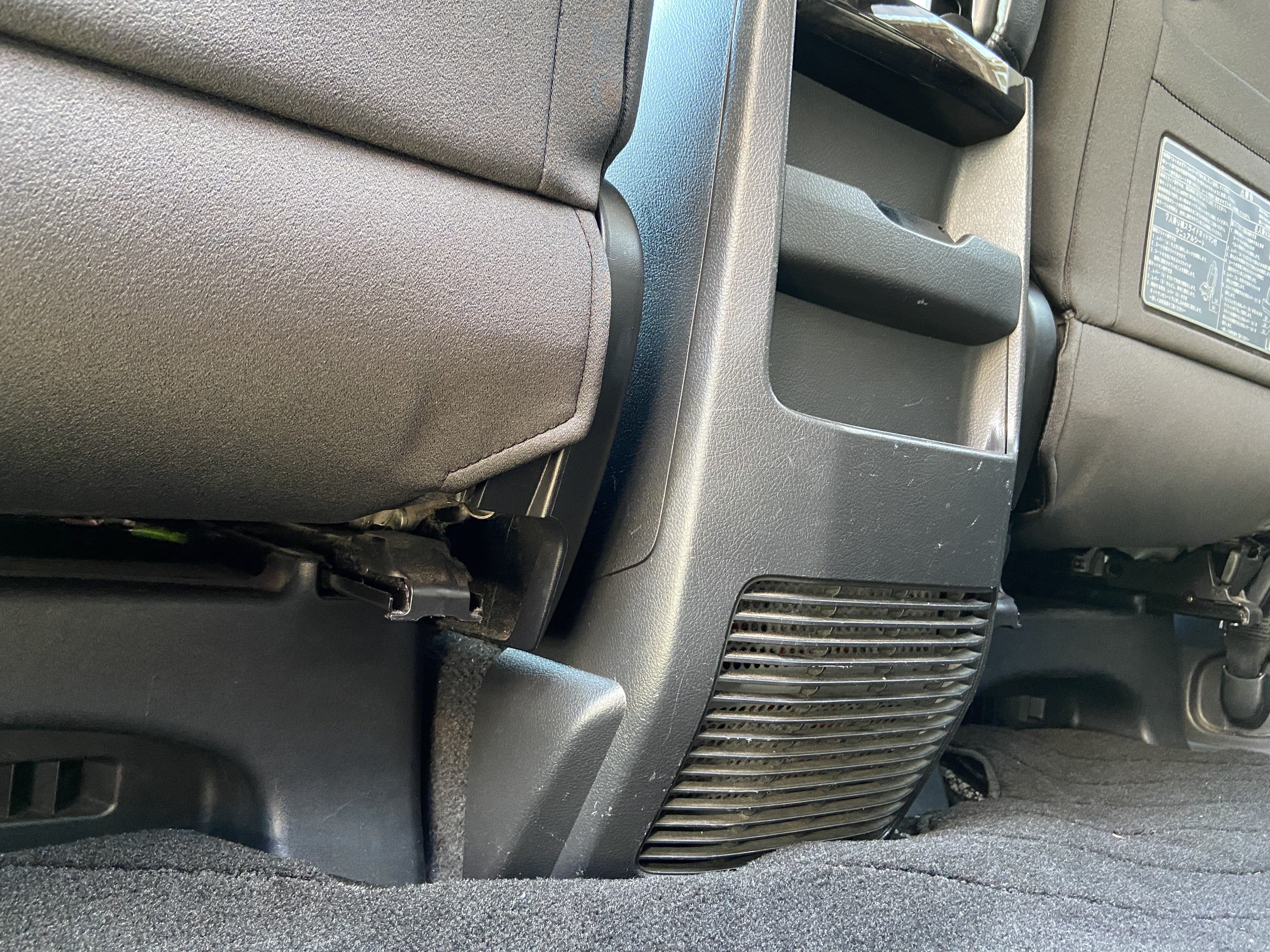

arthurj Posted August 8, 2022 Share Posted August 8, 2022 The intake is definitely in the centre console for the Gen 2, but I can’t find a way of taking off the cover without dismantling the entire console. Not sure if the vents under the driver and passenger seats are air coming from the battery or from climate control, but they seem to blow air out. Quote Link to comment Share on other sites More sharing options...
Steve in Chester Posted August 9, 2022 Author Share Posted August 9, 2022 Is this the page for yours? In which case it looks like there are two fans at the opposite end to the vent you’ve pictured. https://toyota.epc-data.com/alphard/ath20w/32538/electric/8201/ It looks like it’s part number G9230. Quote Link to comment Share on other sites More sharing options...
arthurj Posted August 9, 2022 Share Posted August 9, 2022 Thanks. It looks like those fans have ducts out to the vents under the seats. I still don't know where the air's being pulled into the unit, if not through the vent in the centre console which is just called a 'shield'. It doesn't look like it has a filter you can change. Quote Link to comment Share on other sites More sharing options...
Steve in Chester Posted August 10, 2022 Author Share Posted August 10, 2022 I couldn’t see a filter. It looks from the drawings like the air is sucked in through that vent at the back and blown through the ducts out the vents under the seats. Quote Link to comment Share on other sites More sharing options...
arthurj Posted August 11, 2022 Share Posted August 11, 2022 Found it, the back of the console just pops off 🤦♂️ It is an air intake but there’s no paper or cloth filter, just a metal plate with holes in it. It was crazy dusty though. Quote Link to comment Share on other sites More sharing options...
Steve in Chester Posted August 11, 2022 Author Share Posted August 11, 2022 I think the fans will be at the other end to the inlet. Maybe try vacuuming the dust out if you can get the vac hose through the gap. Quote Link to comment Share on other sites More sharing options...
