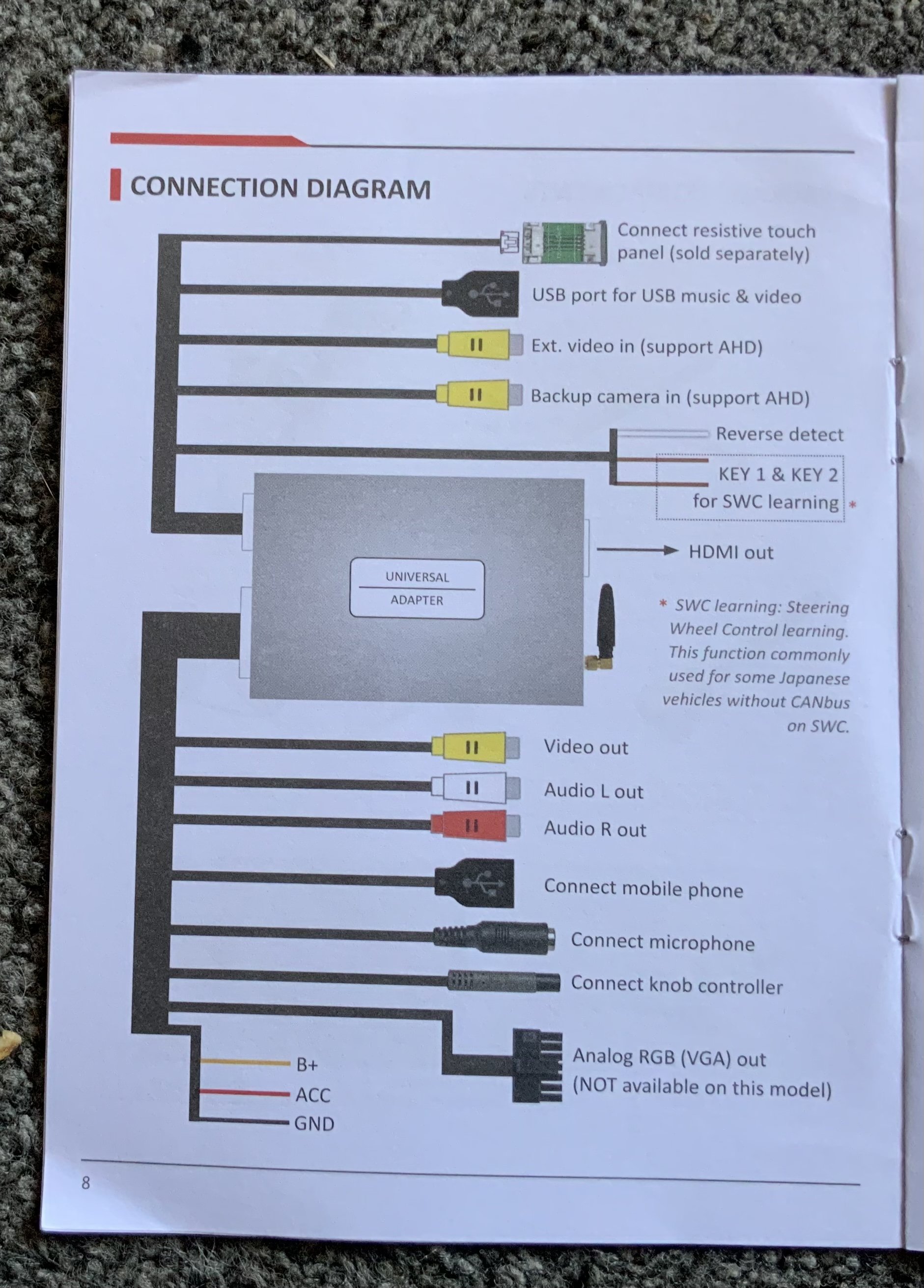

Ayrshire Man Posted August 14, 2022 Share Posted August 14, 2022 (edited) Can anybody help me with the wiring colours so that I can connect this unit so that I get Apple Car Play in my Alphard. Also how does the small connection board fit to give me touch screen? Also key 1 Edited August 14, 2022 by Ayrshire Man Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 15, 2022 Share Posted August 15, 2022 the touchscreen (if it is like what i bought) requires opening up the screen, and disconnecting the touchscreen cable, and placing the supplied splitter inline. Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 16, 2022 Author Share Posted August 16, 2022 Thanks Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 16, 2022 Author Share Posted August 16, 2022 Next question does the KEY 1 and KEY 2 wires need to be connected if so where to. Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 16, 2022 Author Share Posted August 16, 2022 From your previous post you say you have to cut two wires so the screen does not go blank over 5mph, what are the colours of the wires and where are they located at the back of the head unit. Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 16, 2022 Share Posted August 16, 2022 1 hour ago, Ayrshire Man said: Next question does the KEY 1 and KEY 2 wires need to be connected if so where to. I have not connected these, because the audio is routed via the box into my existing headunit, the volume controls on steering still work. I imagine by wiring these in, it will activate the other keys. I have the 18speaker amp model headunit, I believe I have identified the correct wires for the steering, but I have not done an ohms reading on them to confirm. Quote Link to comment Share on other sites More sharing options...

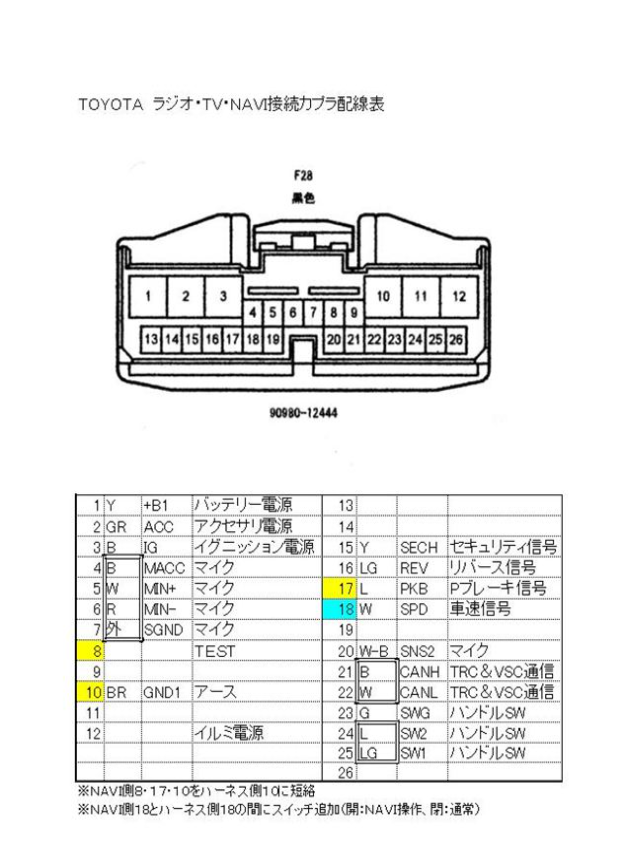

Chris.ac Posted August 16, 2022 Share Posted August 16, 2022 53 minutes ago, Ayrshire Man said: From your previous post you say you have to cut two wires so the screen does not go blank over 5mph, what are the colours of the wires and where are they located at the back of the head unit. my Alphard is a 2010, so the plugs are very different. I was able to use a wiring diagram and test meter to find the right wires. Unfortunately, the site in russia that had the wiring diagrams for the 10series seems offline (They have not paid their server host), and I did not make copies of diagrams at the time. The wires for reverse, speed sense, and steering controls were all found on my main power in plug. Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 16, 2022 Author Share Posted August 16, 2022 Thank you for your prompt reply. Yes mine is a series 10. Trying to find a wiring diagram is difficult I can find one for lots of Toyota models but not Alphard. Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 16, 2022 Author Share Posted August 16, 2022 Hope you don’t mind me asking Did you just cut the wires then tape them up? Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 16, 2022 Share Posted August 16, 2022 5 hours ago, Ayrshire Man said: Hope you don’t mind me asking Did you just cut the wires then tape them up? I cut the wires, and loom side insulated. the side connected to head unit added little latching blocks with added wire to ground. I am planning on adding a switch in to blank panel, to toggle from regular operation. Quote Link to comment Share on other sites More sharing options...
Ayrshire Man Posted August 19, 2022 Author Share Posted August 19, 2022 Hi I have installed this into my 2006 series 10 Alphard and when I release the hand brake the screen goes off. As Chris has informed me above I need to disconnect two wires on the head unit, one for the speed sensor and one for the handbrake Chris’s Alphard is a series 20 and different to mine. Can anyone advise me on which plug it is and what colour are the wires. ICT 27-8CP11 Add Camera To Factory Radio Universal Smartphone Integration Adapter SKU: ICT 27.8CP11 Write a Review Allows you to add a camera to the stock OEM radio Supports Carplay, Android Auto and screen mirroring functions Support AHD cameras input CVBS and HDMI (480P/720P) output Fits any vehicle with HDMI or RCA AV input Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 21, 2022 Share Posted August 21, 2022 answered in other post, hopefully its the 5 pin grey connector that has both the speed signal and parking brake signal. Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 21, 2022 Share Posted August 21, 2022 I also see, this grey port can be fitted with an aftermarket switch, that can be used to turn off and on the bypass, as example in this: https://calllonglentildr.top/index.php?main_page=product_info&products_id=24286 Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 21, 2022 Share Posted August 21, 2022 (edited) This is the control box that is plug and play to bypass parking brake and speed sensor - out of stock here, but gives you something to look for if you want a decent solution: https://www.amazon.co.jp/-/en/Systems-TV-–-Navi-terebinabikitto-10-–-H22-TTN-–-51/dp/B0071HZGEK Kit came with a choice of switches, even a decent OEM looking one for a blanking plate tvnavi_new.pdf Edited August 21, 2022 by Chris.ac Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 21, 2022 Share Posted August 21, 2022 This may be compatible, and in stock: https://www.amazon.co.jp/-/en/Navigation-nszt-–-Y66T-Nscd-–-W66-Genuine-terebi・nabi/dp/B01N30PMGN Quote Link to comment Share on other sites More sharing options...
