Michael Kirk Posted November 20, 2022 Share Posted November 20, 2022 Does anyone know what the tracking is on 2004 Alphard 3 litre.Any help appreciated. Also l have 205 tyres, have been told 215s will fir any comments appreciated. Quote Link to comment Share on other sites More sharing options...
Picasso Posted November 20, 2022 Share Posted November 20, 2022 Hi here is the link for the tracking http://www.jltechno.com/en/alignment_specs.php?brand=MALAYSIA&ModelName=TOYOTA ALPHARD MPV&ModelID=400056 1 Quote Link to comment Share on other sites More sharing options...

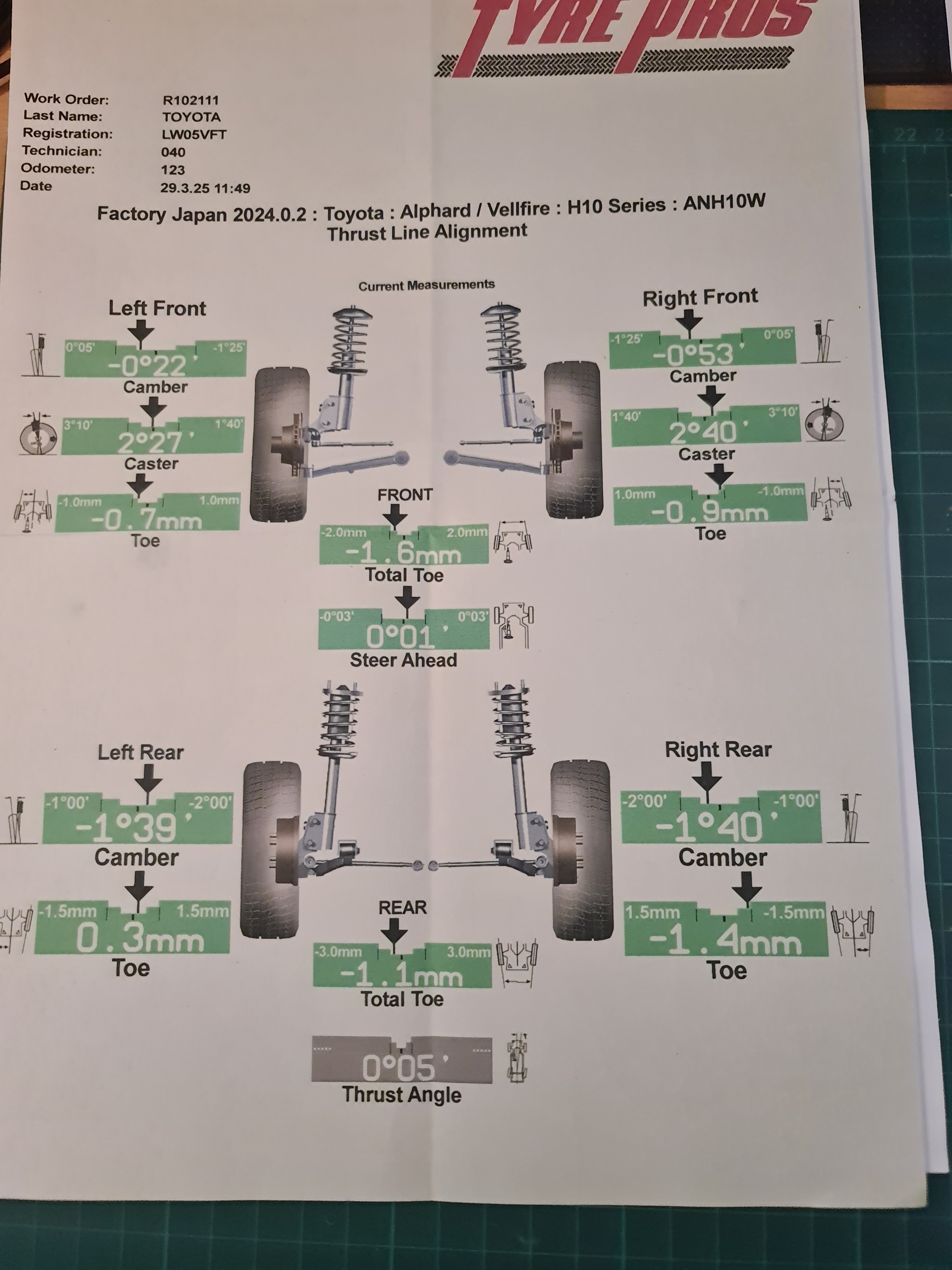

pcous Posted December 17, 2022 Share Posted December 17, 2022 Hi Michael, There appears to be some variation in the figures. I found the following figures for our 2007 Alphard, via the jltechno lookup: http://www.jltechno.com/en/alignment-data-lookup/40016/Toyota.html Alignment Data Lookup->Toyota->Alphard/Vellfire:H10 Series:MNH10W Alignment Specs Parameter MIN spec Standard spec MAX spec Front Total Toe -0.17 0.17 FL Toe -0.09 0.09 FR Toe -0.09 0.09 FL Camber -1.42 0.08 FR Camber -1.42 0.08 Rear Total Toe -0.25 0.25 RL Toe -0.13 0.13 RR Toe -0.13 0.13 RL Camber -2 -1 RR Camber -2 -1 Left Caster 1.67 3.17 Right Caster 1.67 3.17 Left SAI N/A N/A Right SAI 0 0 Firstly, these are different from the figures listed on the webpage that Picasso offered, and it may be that the variation relates to Malaysian data. To complicate matters, our wheel alignment specialist found alternative figures for 2002-07 Alphard, after searching Japanese data. They're a more extensive set of figures, but for some values the tolerance range is narrower than the figures above: Toyota->Alphard H10 Series:MNH10W Wheel Alignment Specification Parameter Minimum Maximum Front Total Toe -0.10 +0.10 FL Toe -0.05 +0.05 FR Toe -0.05 +0.05 FL Camber -1.25 +0.05 FR Camber -1.25 +0.05 FL Caster +1.40 +3.10 FR Caster +1.40 +3.10 FL SAI +10.05 +11.35 FR SAI +10.05 +11.35 FL Included Angle FR Included Angle Front Cross Camber +8.40 +8.40 -0.45 +11.40 +11.40 +0.45 Front Cross Caster -0.45 +0.45 Rear Total Toe -0.15 +0.15 RL Toe -0.08 +0.08 RR Toe -0.08 +0.08 RL Camber -2.0 -1.0 RR Camber -2.0 -1.0 So, we chose to go with the figures that had less tolerance, on the basis that we'd be conforming with both sets of figures. Worth noting, whilst the rear values are quoted, there's no adjustment because the rear axle is fixed. However, it could prove a useful check to see if the alignment is correct for the whole vehicle (which we found ours wasn't, due to a poorly assembled wheel bearing retainer - 2 of the 4 nuts were missing so the leading edge of the wheel was facing slightly outwards...) Quote Link to comment Share on other sites More sharing options...
