DanielEckardt Posted May 28 Share Posted May 28 Hello from Germany, my audio system stopped working. I have compelte no sound and the roof monitor is not working. The failurecode in the headunit is B15D0 Most Comminication. Does anyone have the fixed the same problem? I crosschanged the Headunit and the 18 Speaker Amp with another Vellfire. They are working fine. I measuered the complete Most Ring in the car. All cabels are ok and i have no wiring issues. Does anyone have an other idea for my problem? The partnumber of the roof monitor is 86680-58041-A0 I read soemthing about a broken roof monitor, but it can be fixed. Does anyone know how it can be fixed. Thanks for you help. I love the car, but this problem ist abslout anoying. 😢 Quote Link to comment Share on other sites More sharing options...
Rojie Posted May 28 Share Posted May 28 3 hours ago, DanielEckardt said: Hello from Germany, my audio system stopped working. I have complete no sound and the roof monitor is not working. The failure code in the head-unit is B15D0 Most Communication. Does anyone have the fixed the same problem? I cross-changed the Head-unit and the 18 Speaker Amp with another Vellfire. They are working fine. I measured the complete Most Ring in the car. All cables are ok and i have no wiring issues. Does anyone have an other idea for my problem? The part number of the roof monitor is 86680-58041-A0 I read something about a broken roof monitor, but it can be fixed. Does anyone know how it can be fixed. Thanks for you help. I love the car, but this problem is absolutely annoying. 😢 Hello Daniel, Welcome to the Forum. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 19 Author Share Posted July 19 Does anyone habe an Idea? I ready Something about Problems with the top Monitor and this can bei repaired. Does anyone habe done this? Quote Link to comment Share on other sites More sharing options...

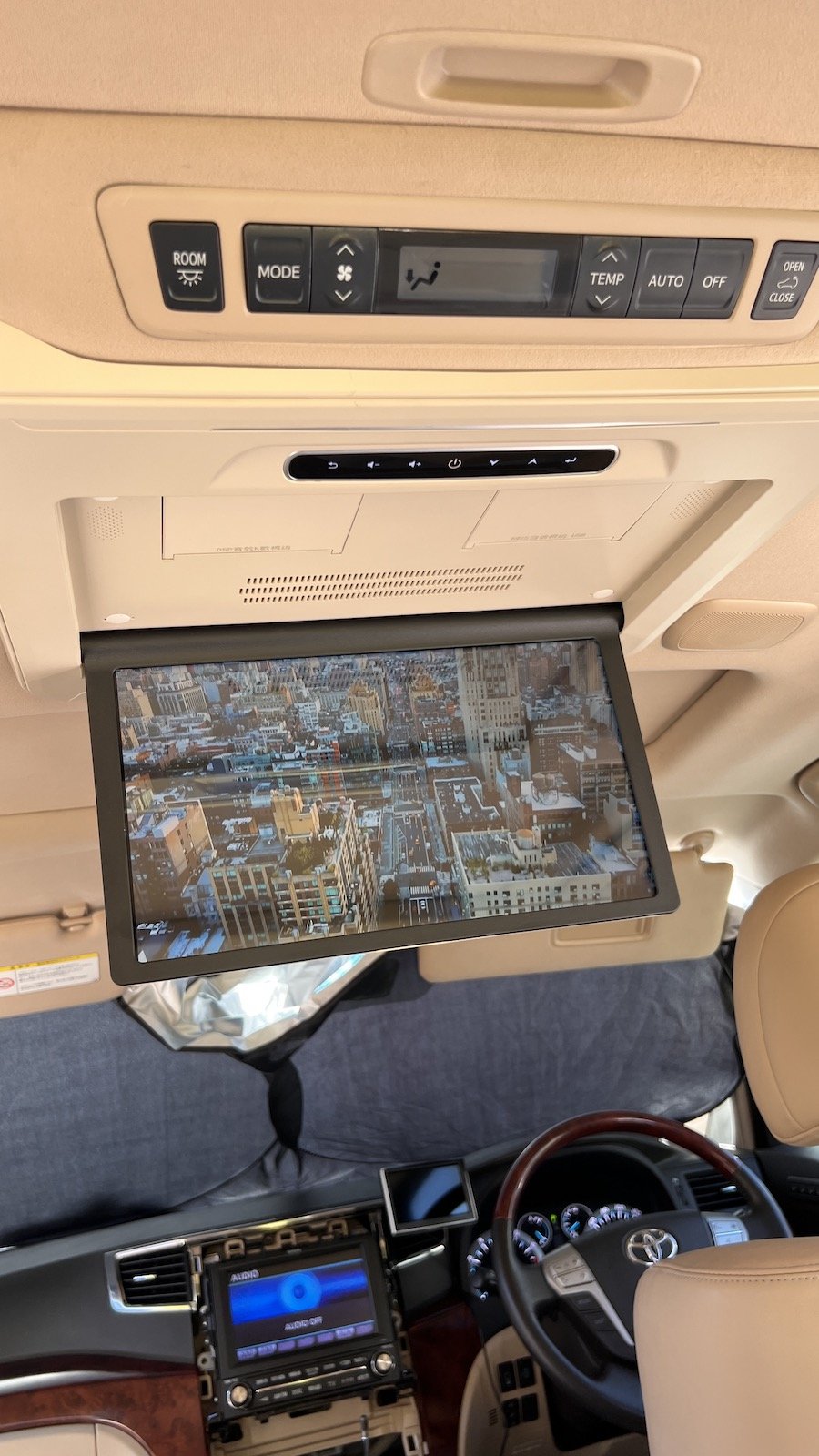

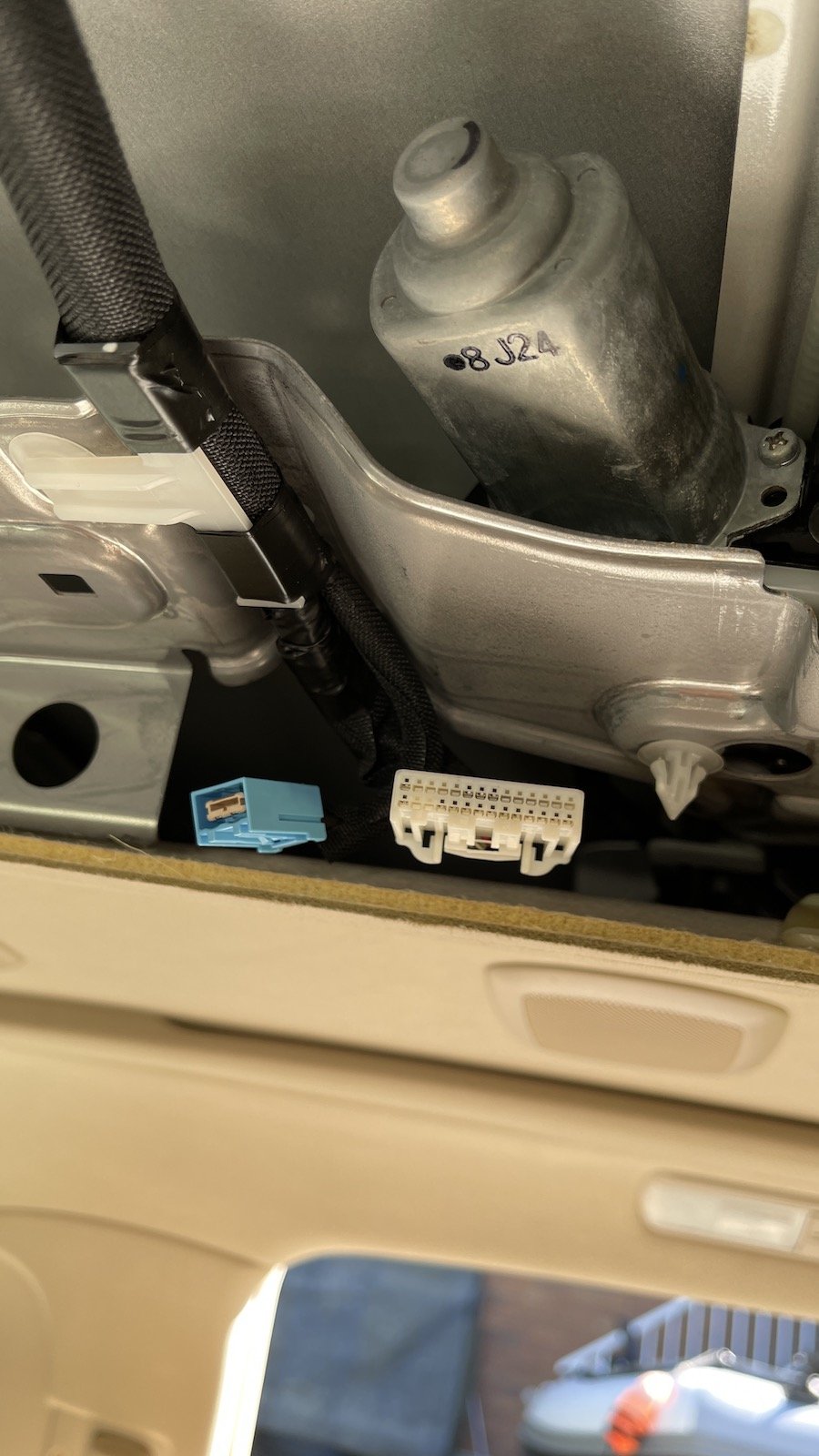

opelrsx Posted July 19 Share Posted July 19 5 minutes ago, DanielEckardt said: Does anyone habe an Idea? I ready Something about Problems with the top Monitor and this can bei repaired. Does anyone habe done this? It's your roof monitor. I went through this when replaced it with a new andriod screen. There's a board in the OEM roof TV, it must be plugged back in the system to make sound working. I had to rip that board out plug it back in the system. Check those two connections first, blue and white. If not, it must be this board faulty. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 20 Author Share Posted July 20 Thanks for this information. Do you have a Link to your Android Screen? Does ist fit with the OEM connectors? The White and blue plugs are checked and These are ok. Maybe i can Change the Monitor with an used fully functional OEM one? Do you think this ist an Idea? Quote Link to comment Share on other sites More sharing options...
opelrsx Posted July 20 Share Posted July 20 8 hours ago, DanielEckardt said: Thanks for this information. Do you have a Link to your Android Screen? Does ist fit with the OEM connectors? The White and blue plugs are checked and These are ok. Maybe i can Change the Monitor with an used fully functional OEM one? Do you think this ist an Idea? I think you could try a funcional OEM monitor, but I am not 100% sure. The andriod roof tv doesn't connect to those two OEM connectors, that's why I got no sound when first installed. It's pretty much a stand alone unit, has two built in speakers. I believe you could run some wires get it connected to the OEM system but just seems too much trouble to make sense to me. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 20 Author Share Posted July 20 How do you fixed the Problem with the Sound without a OEM roof Monitor? Thats a solution i can live with, If the Sound works fine. Quote Link to comment Share on other sites More sharing options...

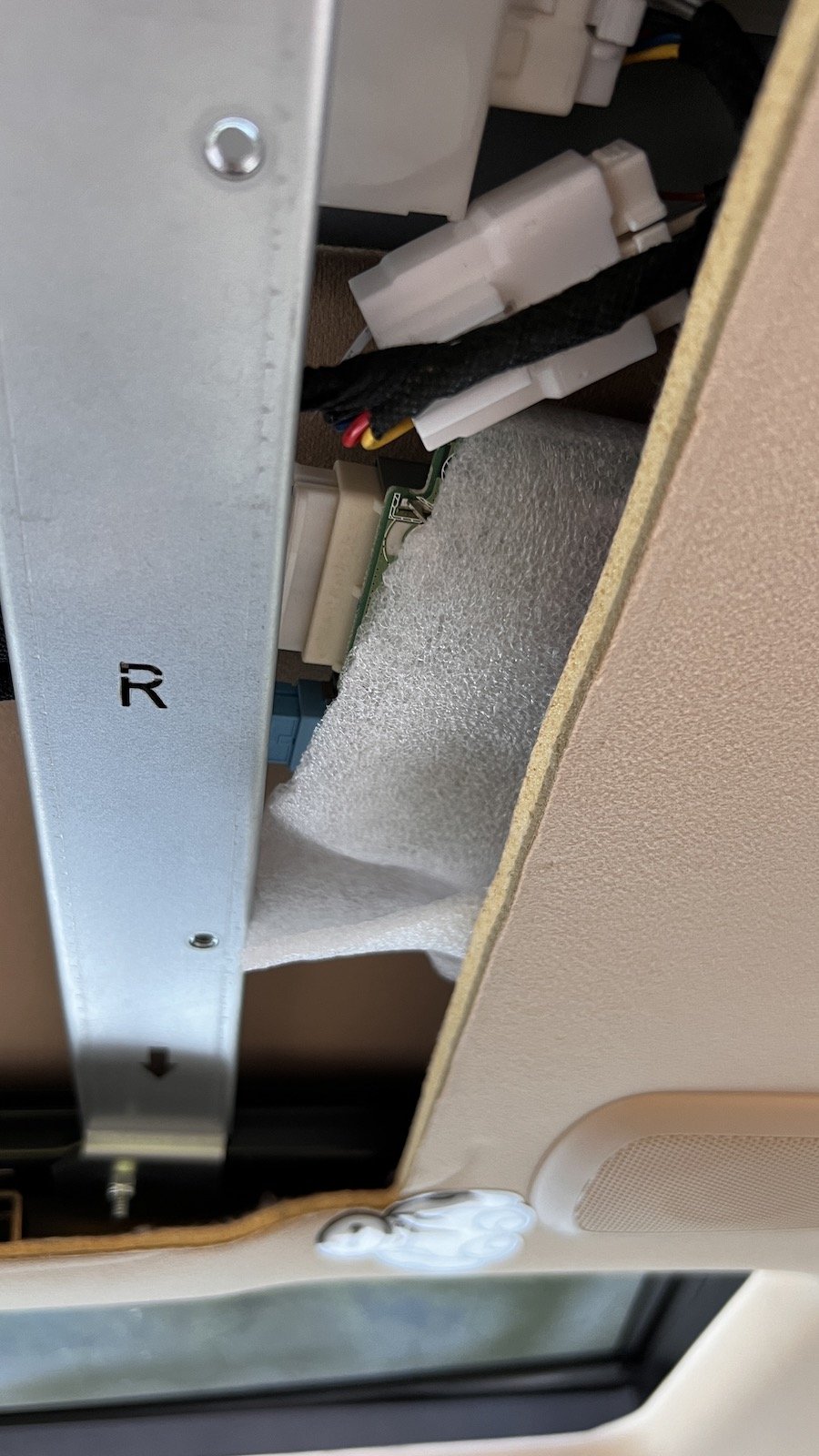

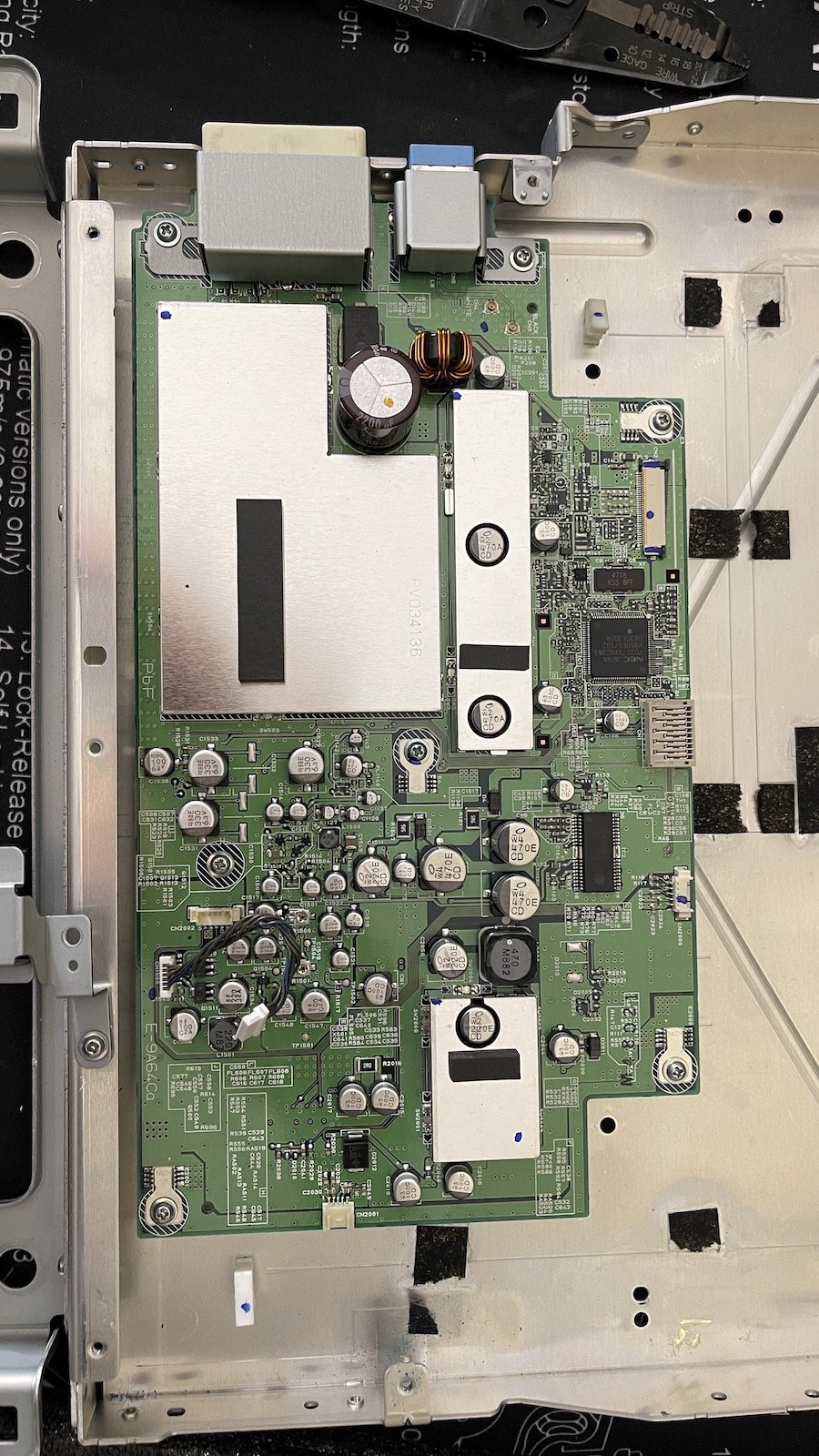

opelrsx Posted July 20 Share Posted July 20 Take apart OEM monitor, get the board, wrap in foam paper plug it back to the connectors 😃 only the board. That's how I get the sound back. And I swapped the headunit for an android system too.. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 20 Author Share Posted July 20 The Board has an electrical failure and you plugged it in without the Rest of the Monitor an it worked? Thats crazy. I will try it Quote Link to comment Share on other sites More sharing options...
opelrsx Posted July 21 Share Posted July 21 No, my OEM roof tv is working properly. I replaced it with a bigger screen then lost all sound. My guess is the sound system needs that roof tv board to work no matter what you have in the front (OEM or aftermarket).. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 21 Author Share Posted July 21 Ah ok, i think my Screen ist broken, so i have No sound Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted July 24 Share Posted July 24 On 7/21/2024 at 3:59 AM, opelrsx said: No, my OEM roof tv is working properly. I replaced it with a bigger screen then lost all sound. My guess is the sound system needs that roof tv board to work no matter what you have in the front (OEM or aftermarket).. I think all that is needed is to loop back the wui/wuo or the mo/mi pins. This is because the MOST network is a circular loop, so when you remove it or the rear screen is broken, the signal loop is broken. Your hack of retaining the board works because it's completing the loop. Quote Link to comment Share on other sites More sharing options...

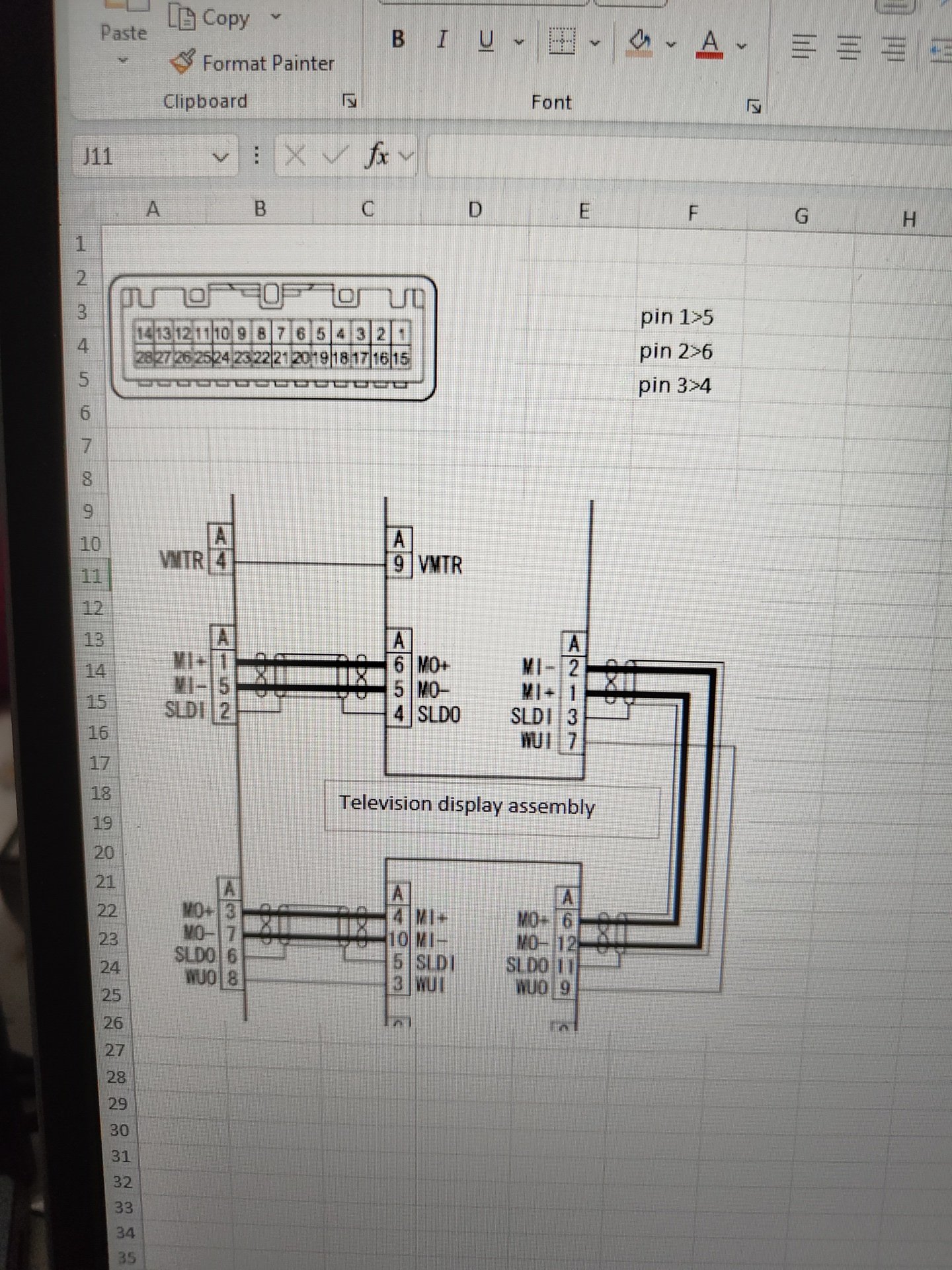

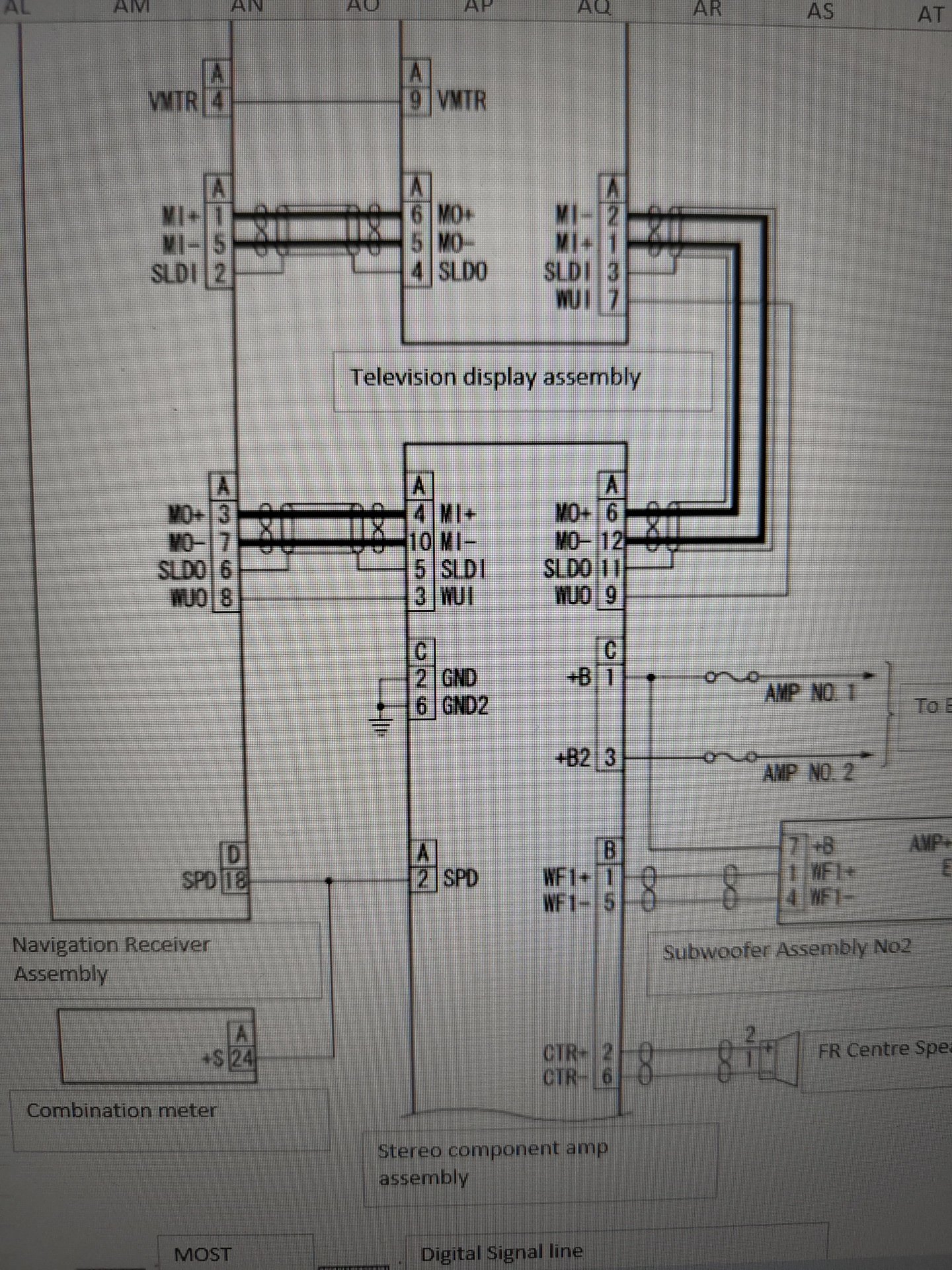

Chris.ac Posted July 24 Share Posted July 24 You can see the loop in this image, you have a wake up signal to the amp from the headunit, and from the amp to the rear screen. (WUO WUI) The signal loop for audio is the mi and mo wires. Quote Link to comment Share on other sites More sharing options...

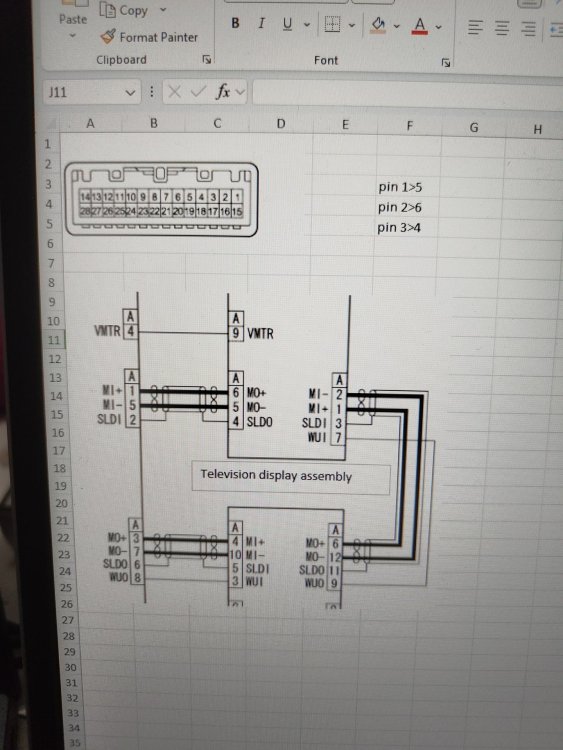

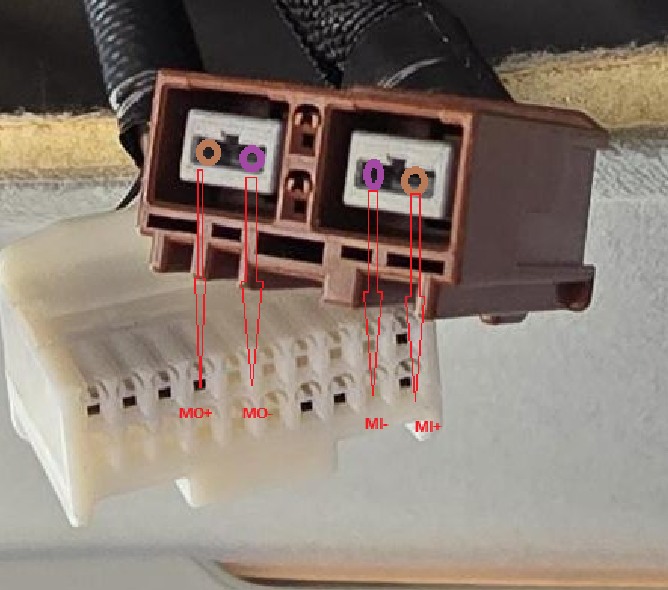

Chris.ac Posted July 24 Share Posted July 24 So at a guess. This is what i think needs doing Quote Link to comment Share on other sites More sharing options...

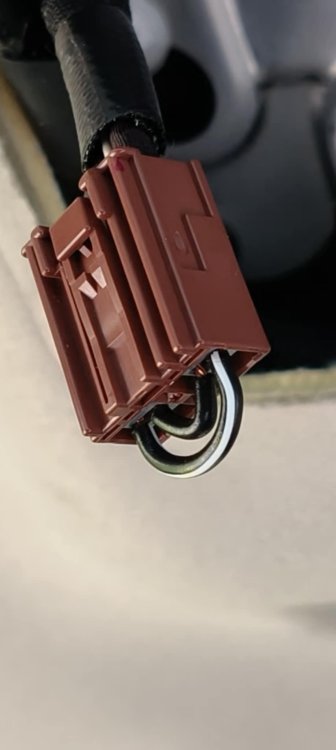

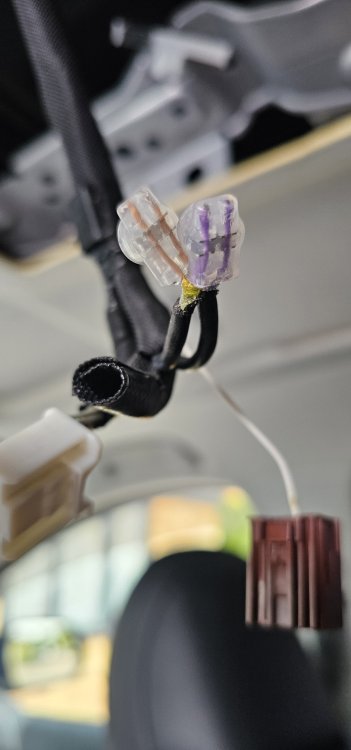

Chris.ac Posted July 24 Share Posted July 24 On 7/21/2024 at 3:12 PM, DanielEckardt said: Ah ok, i think my Screen ist broken, so i have No sound If u want to risk testing my suggestion above, you just need to short those 3 sets of pins. 1 Quote Link to comment Share on other sites More sharing options...
opelrsx Posted July 24 Share Posted July 24 Make sense 👍 Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 25 Author Share Posted July 25 for me it makes also sense. I will test it maybe today i´ll give you a feedback Quote Link to comment Share on other sites More sharing options...

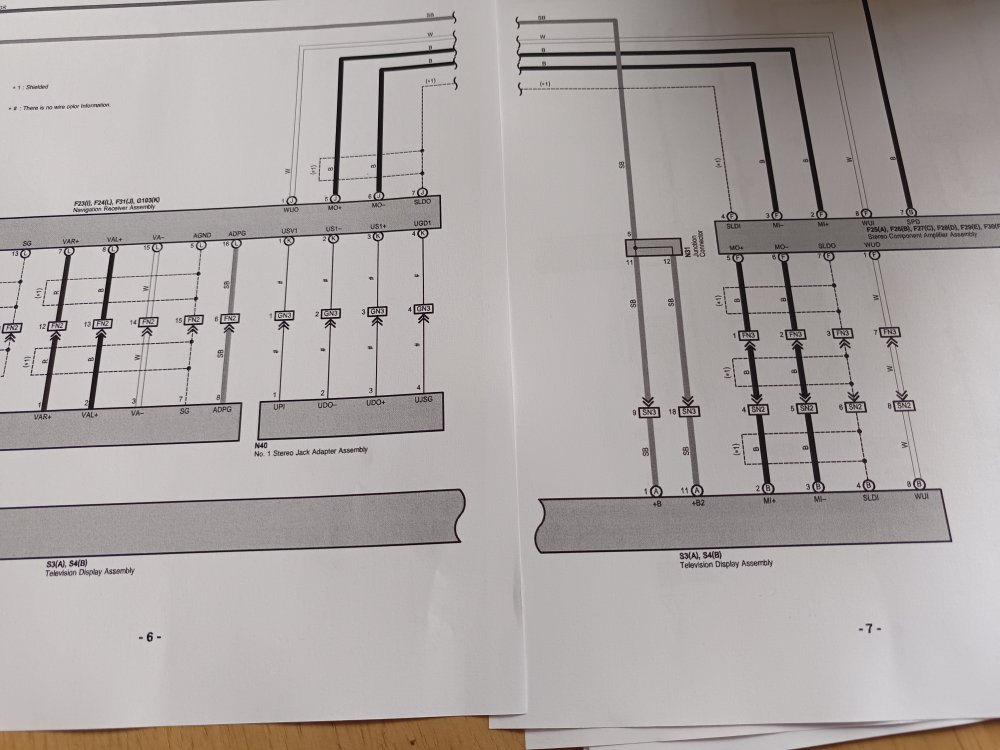

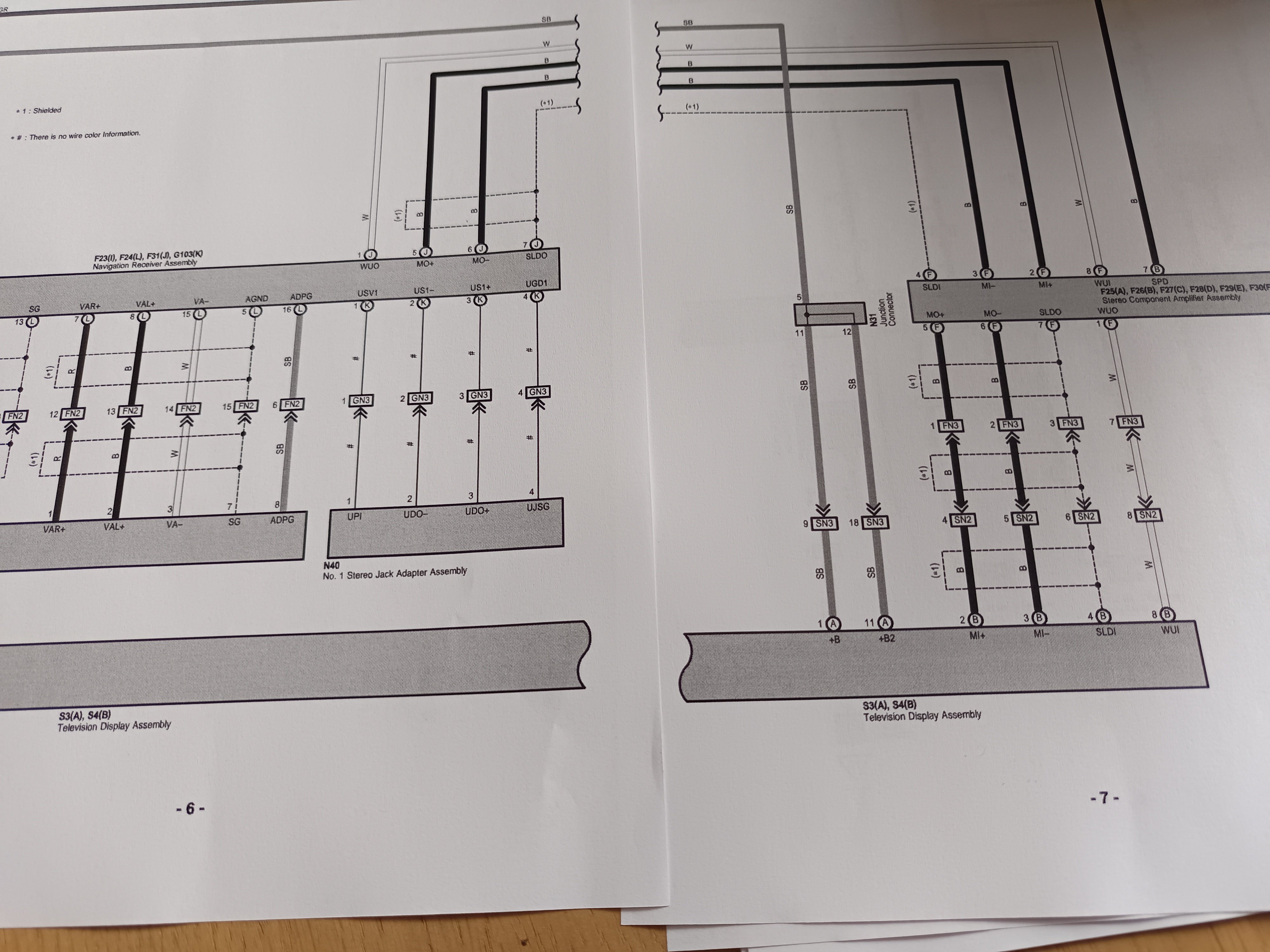

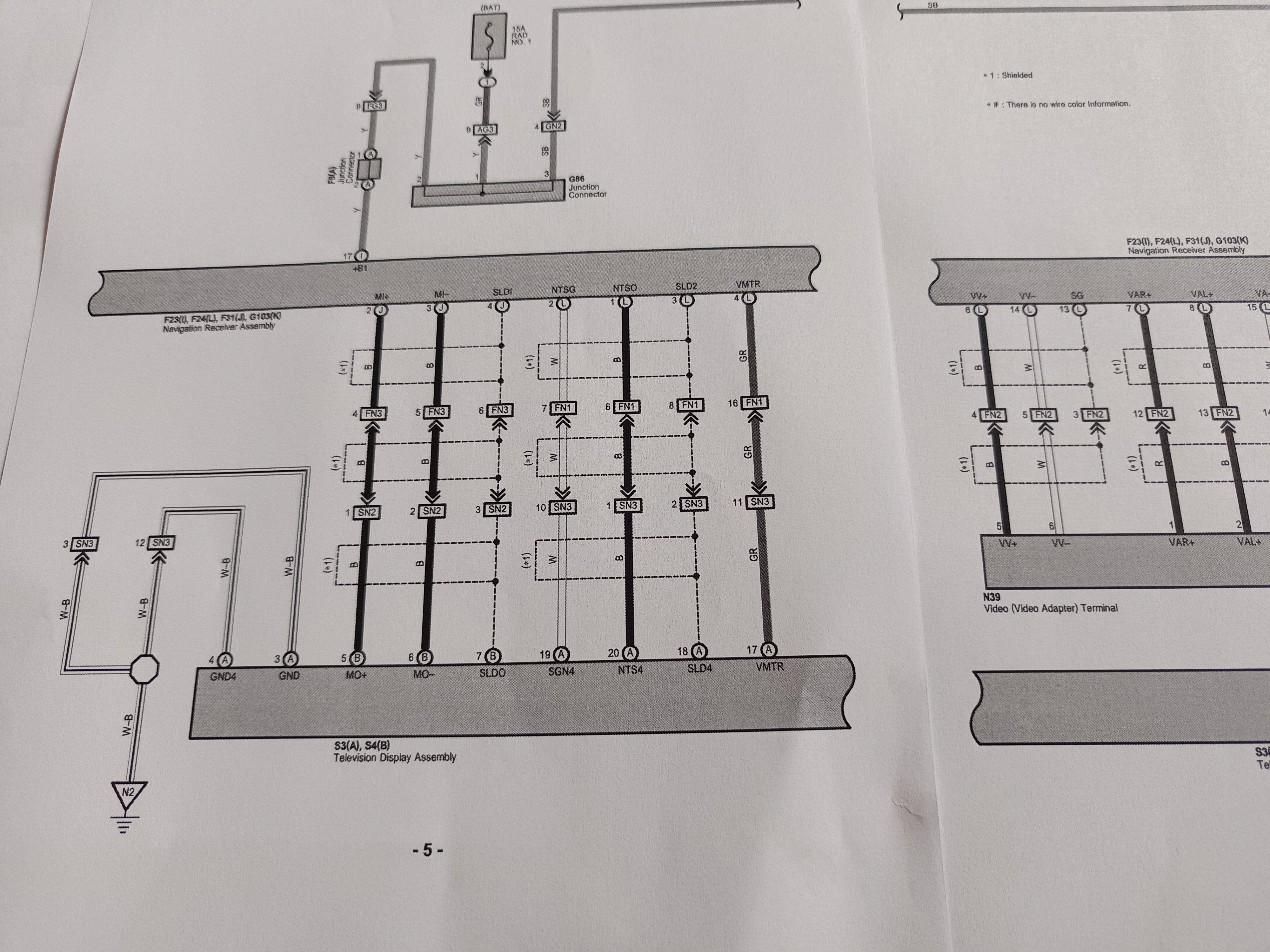

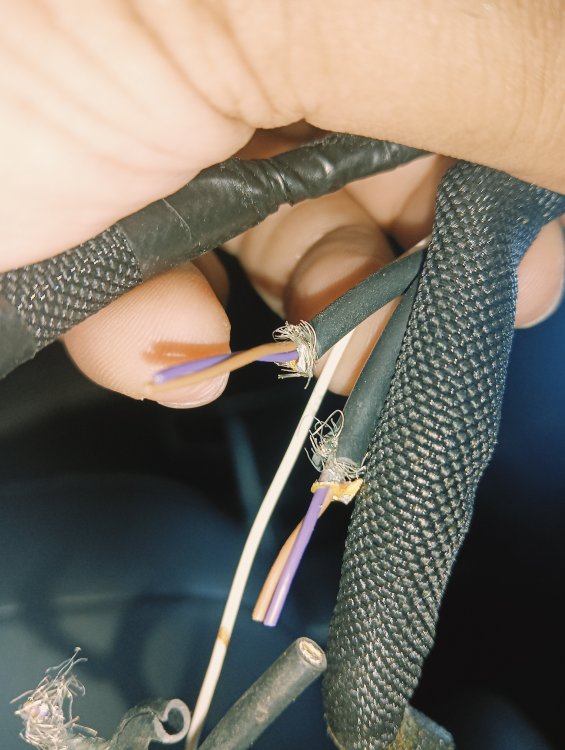

DanielEckardt Posted July 26 Author Share Posted July 26 I checked IT with my own wiring Plan. IT comes direct from Toyota for my von number. I have to Bridge Mi+ Pin 2 to Mo+ Pin 5 Mi- Pin 3 to Mo- Pin 6 Sldi Pin 4 to sldo Pin 7 Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted July 26 Share Posted July 26 Be careful, there are differences between the JDM alphards and the export market ones (Hong kong, malaysia, uae, Russia) The wiring i have is from the Japanese dealer sold cdrom, and the online gsic versions are the export units ( you'll notice they make reference to left hand and right hand drive) Maybe your drawings are valid, but I'm a little cautious. Where did you get the drawings? Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted July 26 Share Posted July 26 Something to be aware of, too, is that the high end amplified headunits are able to play 2 separate audio sources for front and rear, which is probably why there is a loopback Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 26 Author Share Posted July 26 My drawings are direct from my German Toyota Dealer. My Vellfire ist an original Japanese model 1 Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted July 27 Share Posted July 27 Ok, they are using the https://www.toyota-tech.eu/default.aspx online gsic, which mostly is correct, it is based on the export models. Our Japanese vehicles have codes like anh20w, ath20w, ggh20w, whereas the export models end with the letter L or R, eg. ggh20R for right hand drive. Slightly different wiring looms. Quote Link to comment Share on other sites More sharing options...
DanielEckardt Posted July 27 Author Share Posted July 27 Oh my groß. I Love you so much. I bridged the wiring Like your pinout and it worked. Inhaber audio! Thank you so much. So i can search a new Monitor and it will bei fine. 1 Quote Link to comment Share on other sites More sharing options...
Chris.ac Posted August 10 Share Posted August 10 On 7/27/2024 at 1:28 PM, DanielEckardt said: Oh my groß. I Love you so much. I bridged the wiring Like your pinout and it worked. Inhaber audio! Thank you so much. So i can search a new Monitor and it will bei fine. Nice. At least we have now confirmed fix. 1 Quote Link to comment Share on other sites More sharing options...
Carbs Posted August 15 Share Posted August 15 On 7/27/2024 at 10:28 PM, DanielEckardt said: Oh my groß. I Love you so much. I bridged the wiring Like your pinout and it worked. Inhaber audio! Thank you so much. So i can search a new Monitor and it will bei fine. Sorry to be pest, I'm having the same issue with no sound. I have the OEM rear screen, the sound was working, there was a small pop sound from the speakers and now no sound. The MOST has the green comms link flashing slowly which I'm told means the link is down. The amp under the passenger seat seems fine, which leads me to believe it's the rear screen board has gone bad. Did you bridge the pins at the screen end of the connector? If so, would you be able to take a photo of which pins on the connector. I tried the suggested pins, but still no luck, not sure if I'm reading it wrong or I'm just too dense to figure it out. Thank you kindly. Quote Link to comment Share on other sites More sharing options...
