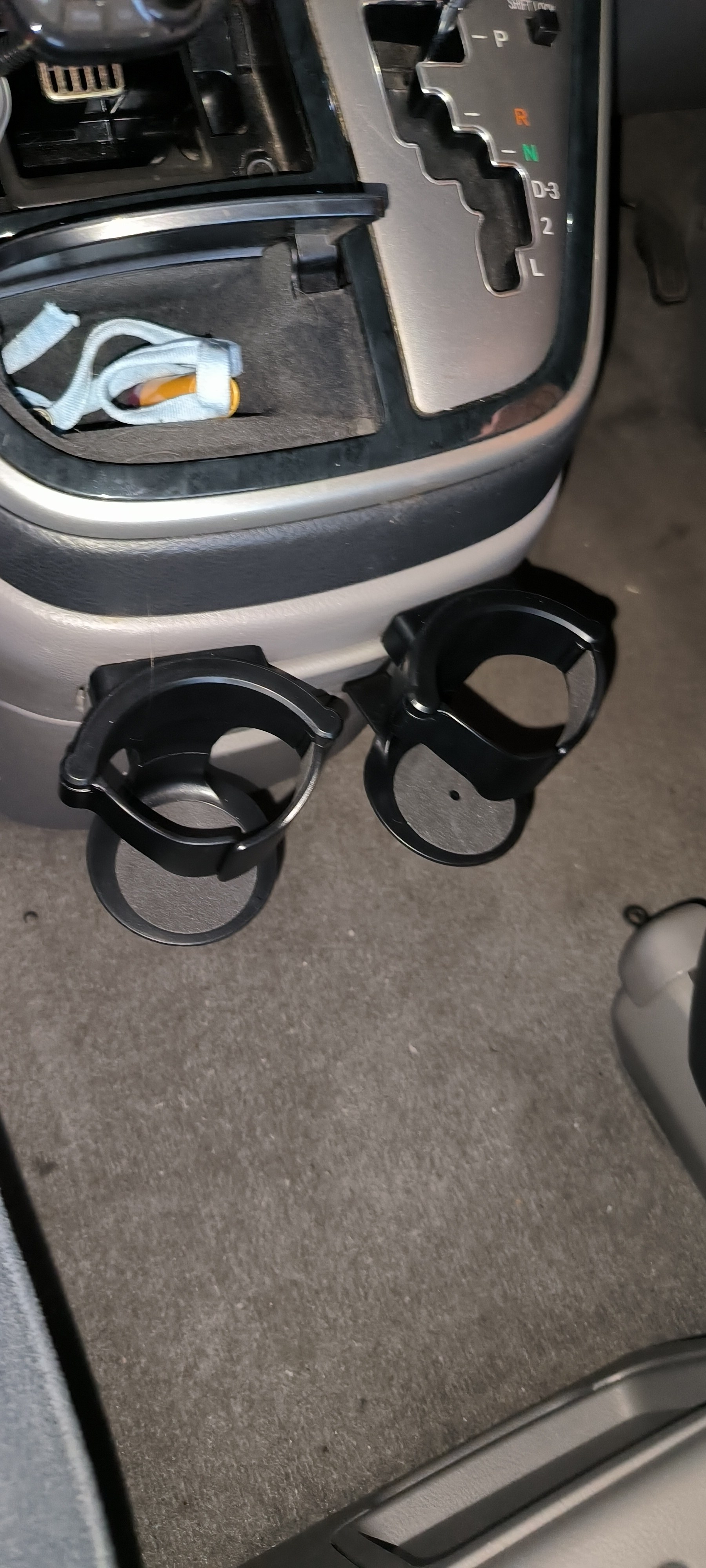

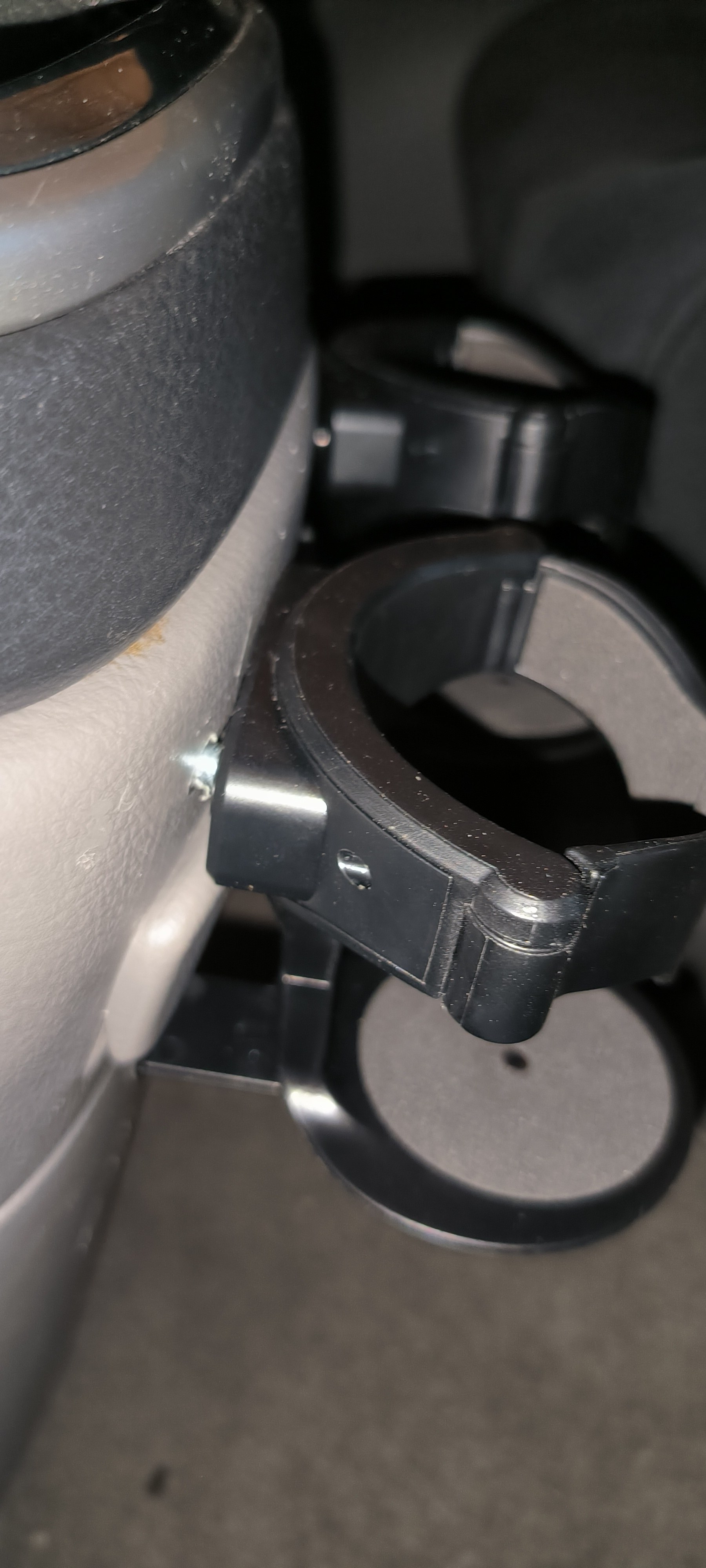

Heres my finished article. Two M6 screw bolt on the rear, there are 4 little screws to undo. Once undone you can thread the bolts through the rear mount. Then mark your hole positions on the dash just above the cupholder and drill using a 6mm drill bit. Wood or metal will be fine as it's thick plastic. Then screw the backplate onto the cup holders and push into the holes and nut up the bolts. You will need to remove the trim where the radio is but put the car in N, and the panel lifts up, carefully as you need to undo 5 wiring connectors. Then you've got a fully new cup setup.

After extensive looking (i.e. camera, pipe cam and pulling trims etc off). I found that you need to remove the whole centre console lower dashboard to get those screws. So i've decided to make my own from the Amazon standard vent cup holders. I bought these CupHolders , Next I remove the air vent clips, put a 4mm drill bit through the retaining back plate and then through the old cup holder cover/pull arm. feed some 4mm threaded screws through (like faceplate screws) then bolt them on. No more brittle plastic and doesn't cost me over £60. Will post pictures onec I've done it.

Here are others you requested easycloseslidingdoor (1).pdf easyclosebackdoor (1).pdf Powerassistbackdoor (1).pdf PowerassistslidingdoorRH (1).pdf PowerassistslidingdoorLH (1).pdf

Hi Sunesh, Here are some of them. hisat111.pdf hisat102.pdf Sunroof.pdf Power Window System.pdf

Hi all, Has anyone removed the dashboard cupholder for the 2002-2005 models? Looking as we have repaired it 8 times now and this time the plastic just broke and is now horrible to repair (which it cant be).

Currently is an AC, RH sliding door, Sunroof & Window system hisat111.pdf hisat102.pdf hisat047.pdf hisat035.pdf

I know it's a year old but did you find it?

Seriously, that looks banging :) I do like the body kit on that. they have done some serious work to it. :)

Hi, I had an estima before my alpy and love the Alphard but it's a 3l V6. More umph. 😁 I believe the alphard hybrid cells are 18650 batteries or I might be wrong.

I would aliexpress it and do it yourself, find one on there then take the unit out and take a picture of the connectors and send it to them. Beaware if you remove the original head unit you will loose some features, like reversing camera, lane control and auto lights plus loose surround sound if you got it.

I've tried that, I really need a power wiring schematic for the roof and relays.... Can you assist in this?

Yep, checked fuse to. That was a bit of gymnastics

Hi All, I cant figure out where this electronics is dead. It appears my wires have continuity. but no power. even though everything shows power. Anyone got schematics on the wiring and ECU for the sun roof.

I'd get them repaired about £25 for each part and an hour to fit youself or an hours time for the Garage.

I can vouch for Amayama, had some lovley window seals and parts from them. :)
